Holt 1.0
Unashamedly XC
Holt – our first mountain bike. Unashamedly XC. All of our knowledge distilled into an XC hardtail – with an emphasis on creating the perfect Ultra-distance race machine.
Ridden to a course record victory in the 2024 Highland Trail 550 by Alex McCormack. The bike is designed to be fast and efficient, with class leading compliance and comfort.
Steel excels at making a short travel hard tail, by not over-building the frame we’ve been able to focus on maintaining the ‘quality of the material’, to deliver a ride feel that can only be steel.
Compliance, traction, agility, zip, snap, grip, flow… A fast, off-road adventure machine.
Holt 1.0 Features
Ultra-distance Racer – World Traveller – XC Machine
Ridden to Highland Trail 550 victory in a record time by Alex McCormack.
Ridden through the wilds of Kyrgyzstan.
Ridden in the woods on your local singletrack.

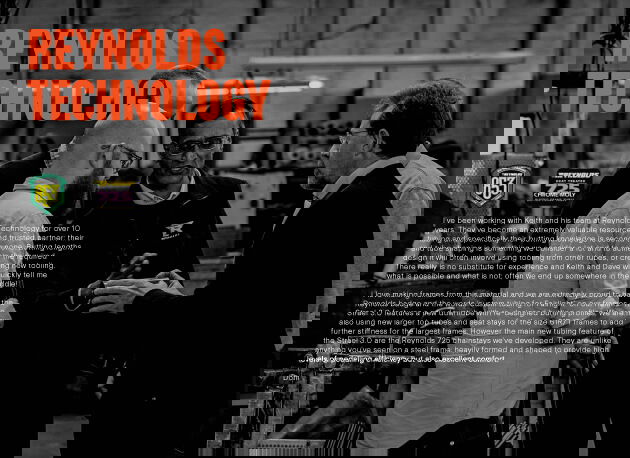

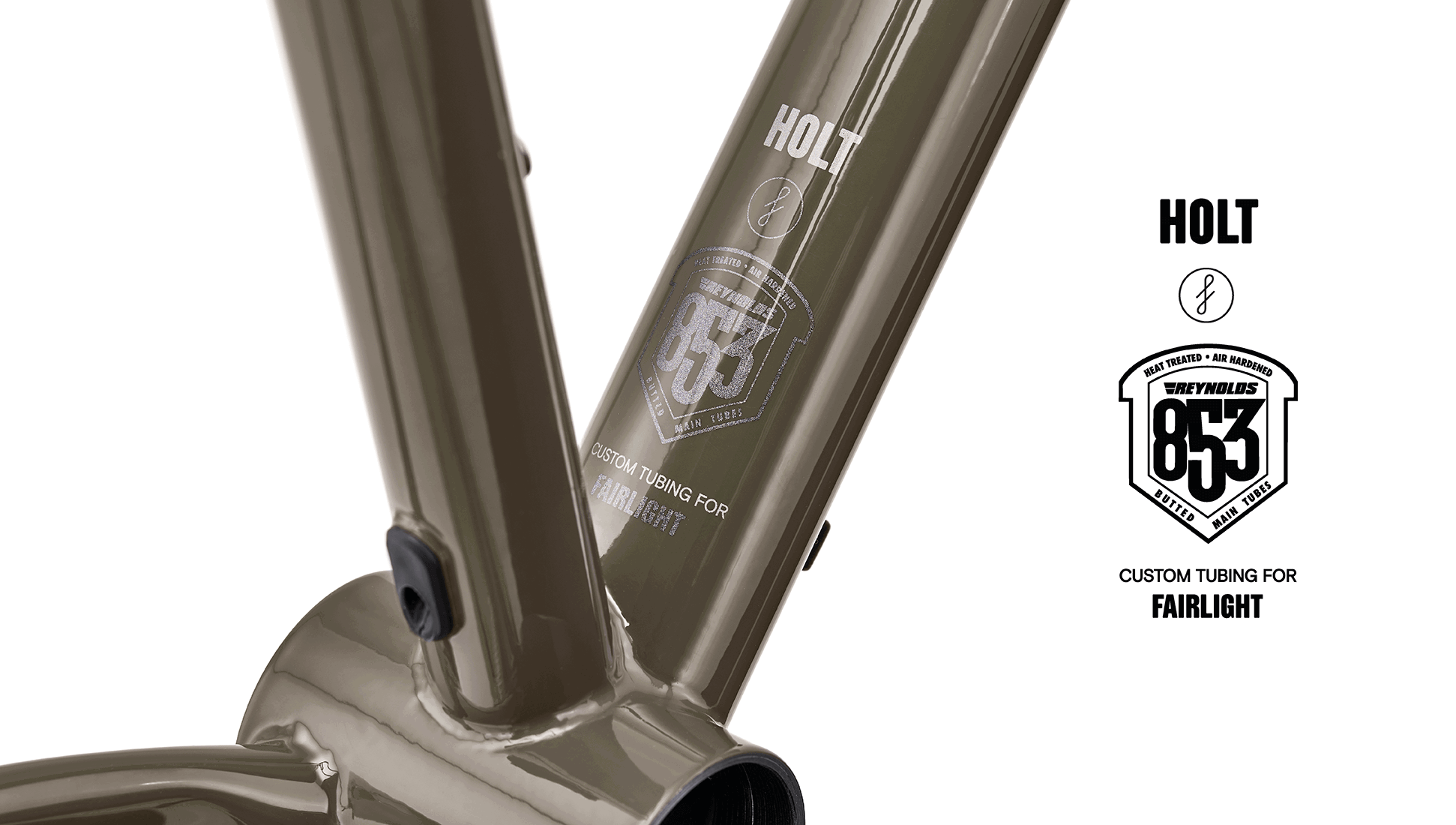

Custom Reynolds 853 Tubing – made for Fairlight
Reynolds have been our valued partner since we started in 2016. Their reputation for quality and integrity is legendary. We work hand in glove with them, allowing us to design comfort, stiffness, and longevity into our bikes.

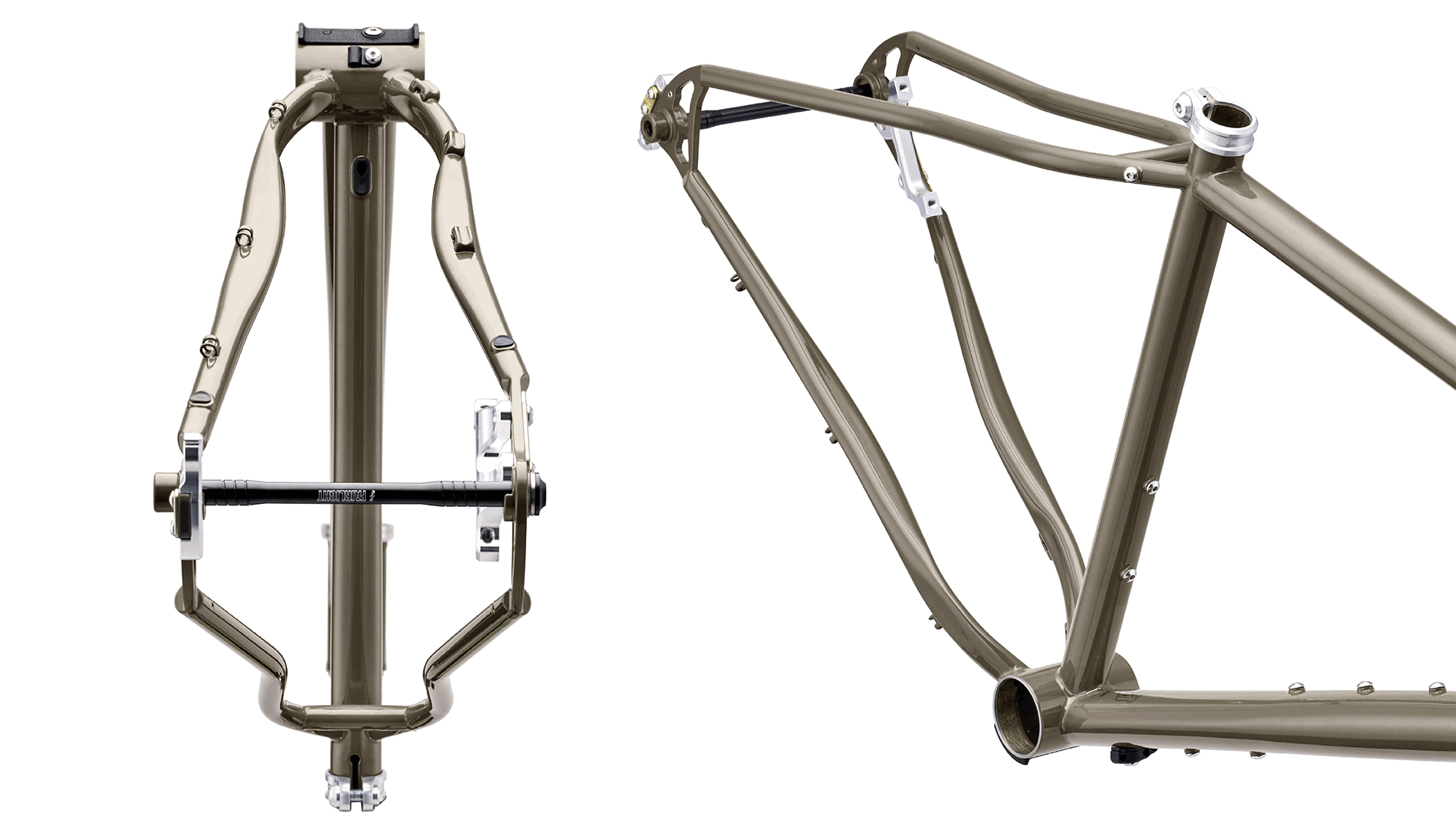

Design Focus
Heavily flattened chainstays and seatstays provide comfort. Bi-ovalised down tube for pedalling power transfer.
Our frames are technically challenging to make. But we think the effort is worth it.

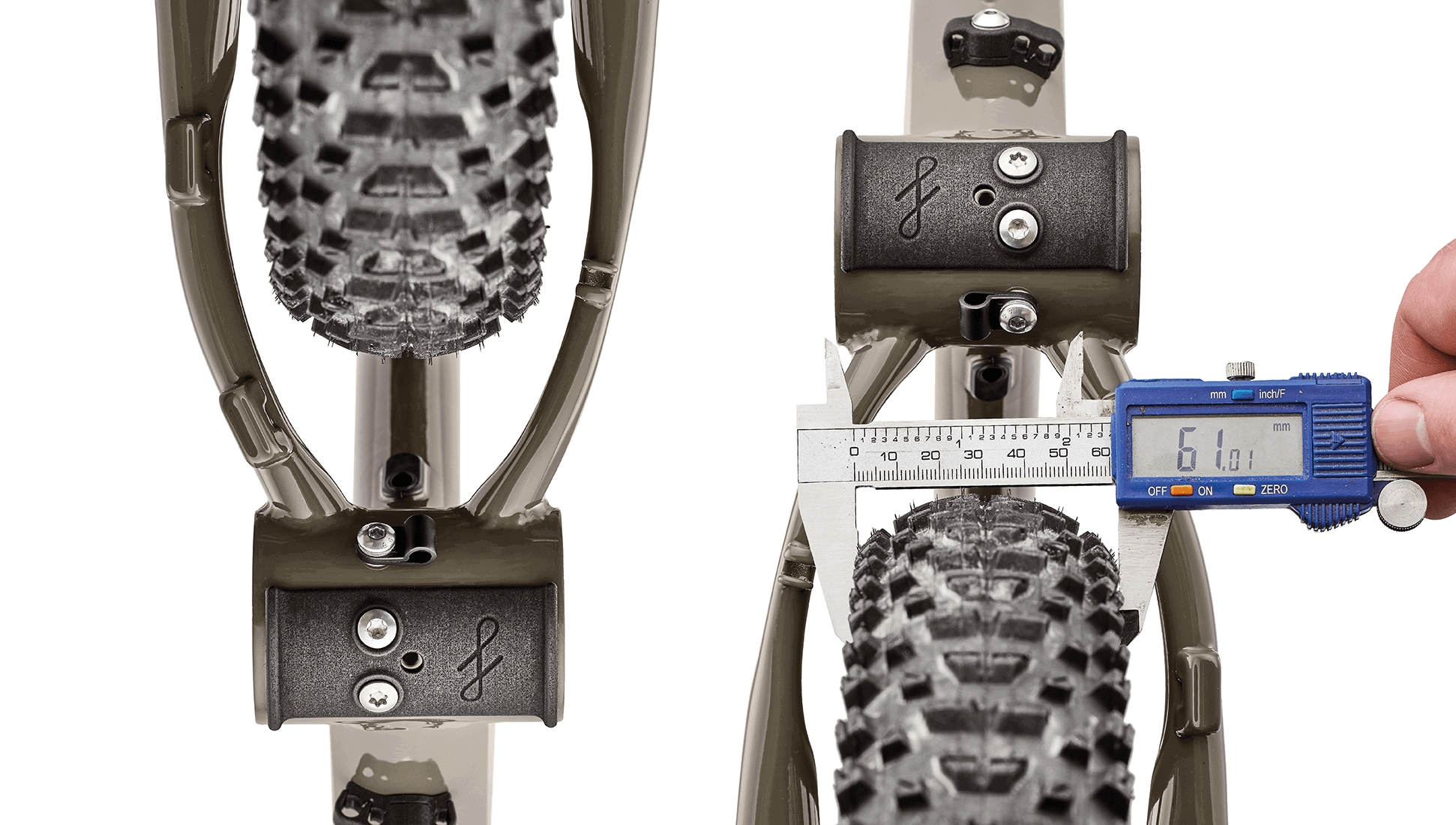

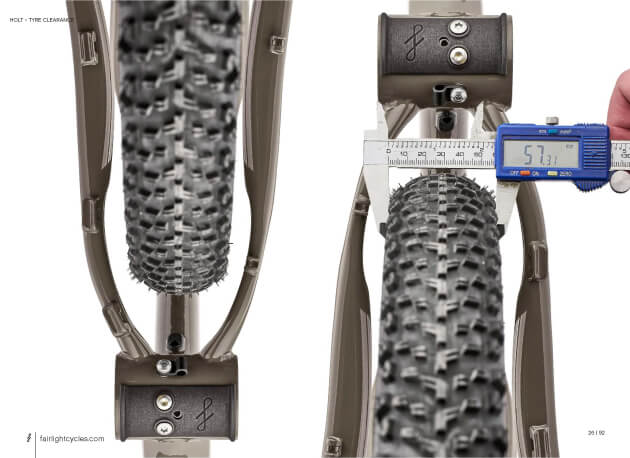

Clearance for 29in x 62mm (2.4″) tyres
Heavily shaped chainstays allow for use to optimise for comfort while maintaining good tyre clearances.
27.2 Seatpost – Maximum Compliance
Using a 27.2 post allows for greater comfort when running a rigid post. Variety of dropper posts available with up to 125mm drop.

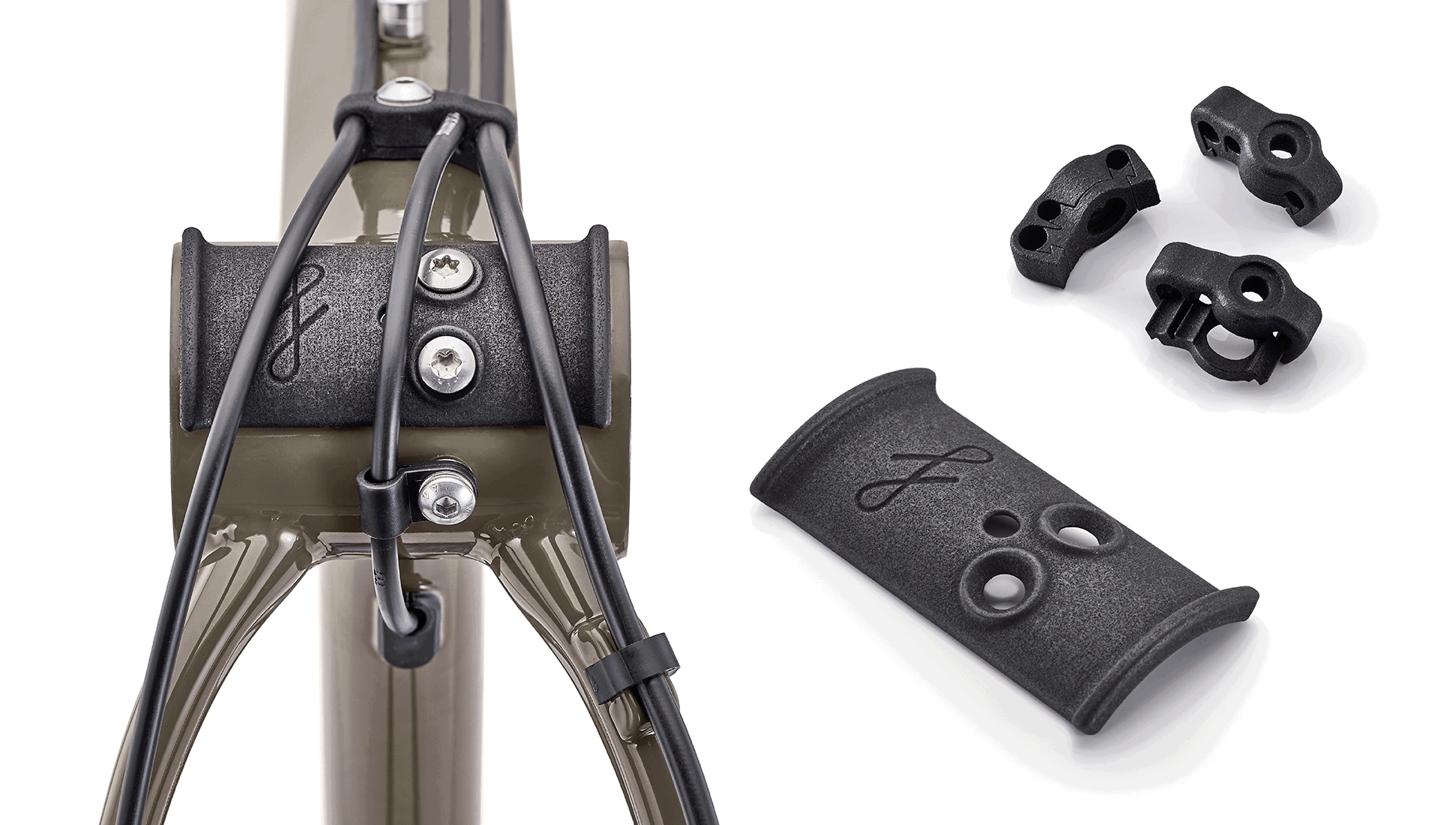

Fairlight Custom 3D Printed Parts
Custom 3D printed cable guides allow for super-clean cable routing.
Configurable from 1x with rigid post to 1x mechanical with dropper.
Build your Holt any way!

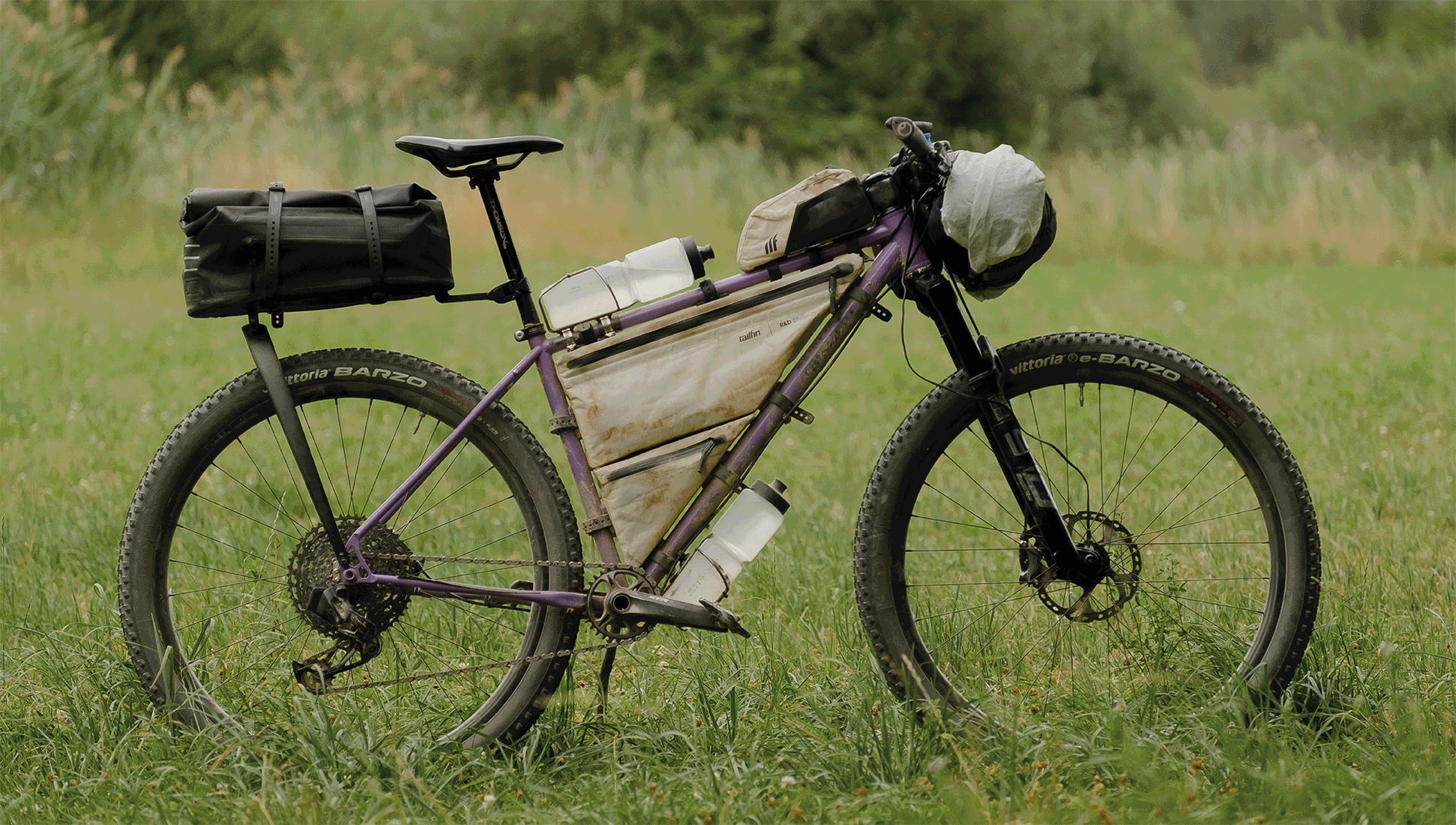

Rack and adventure cage compatible
Multiple bosses allow fitment of racks and cages.
Adventure Machine
Ridden all over the world.
Sometimes very fast – sometimes slow.
Details Matter – Function & Form

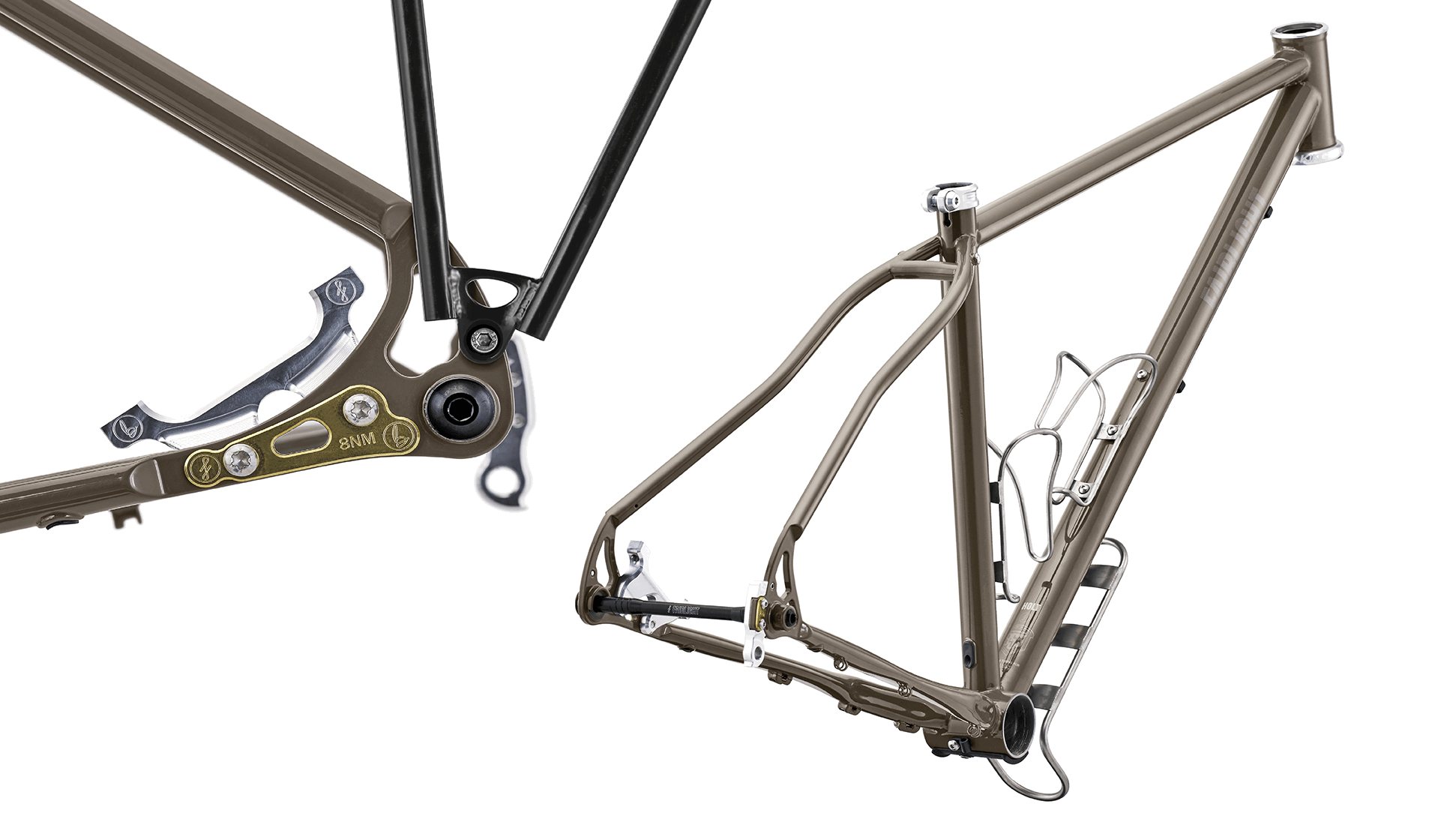

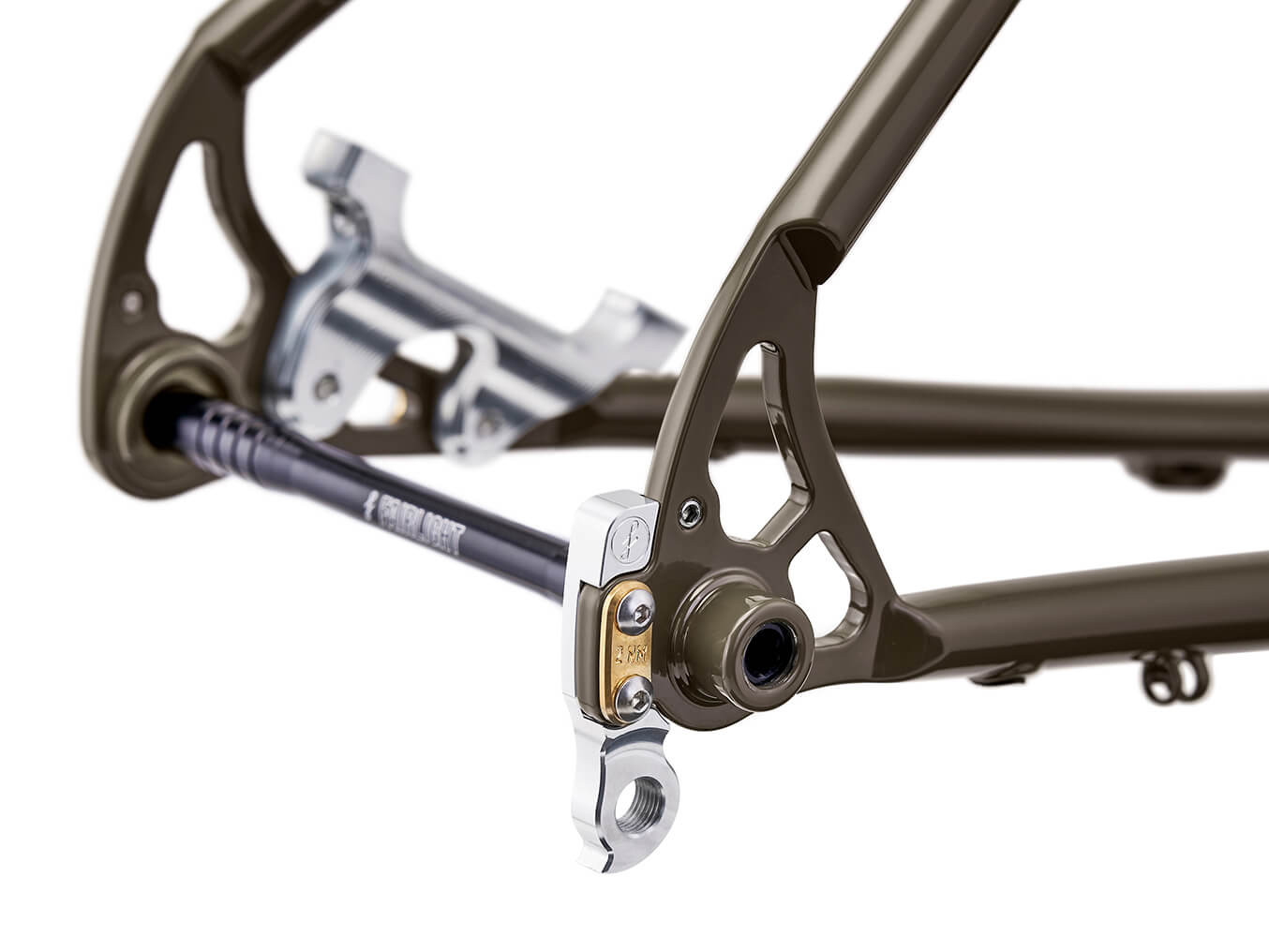

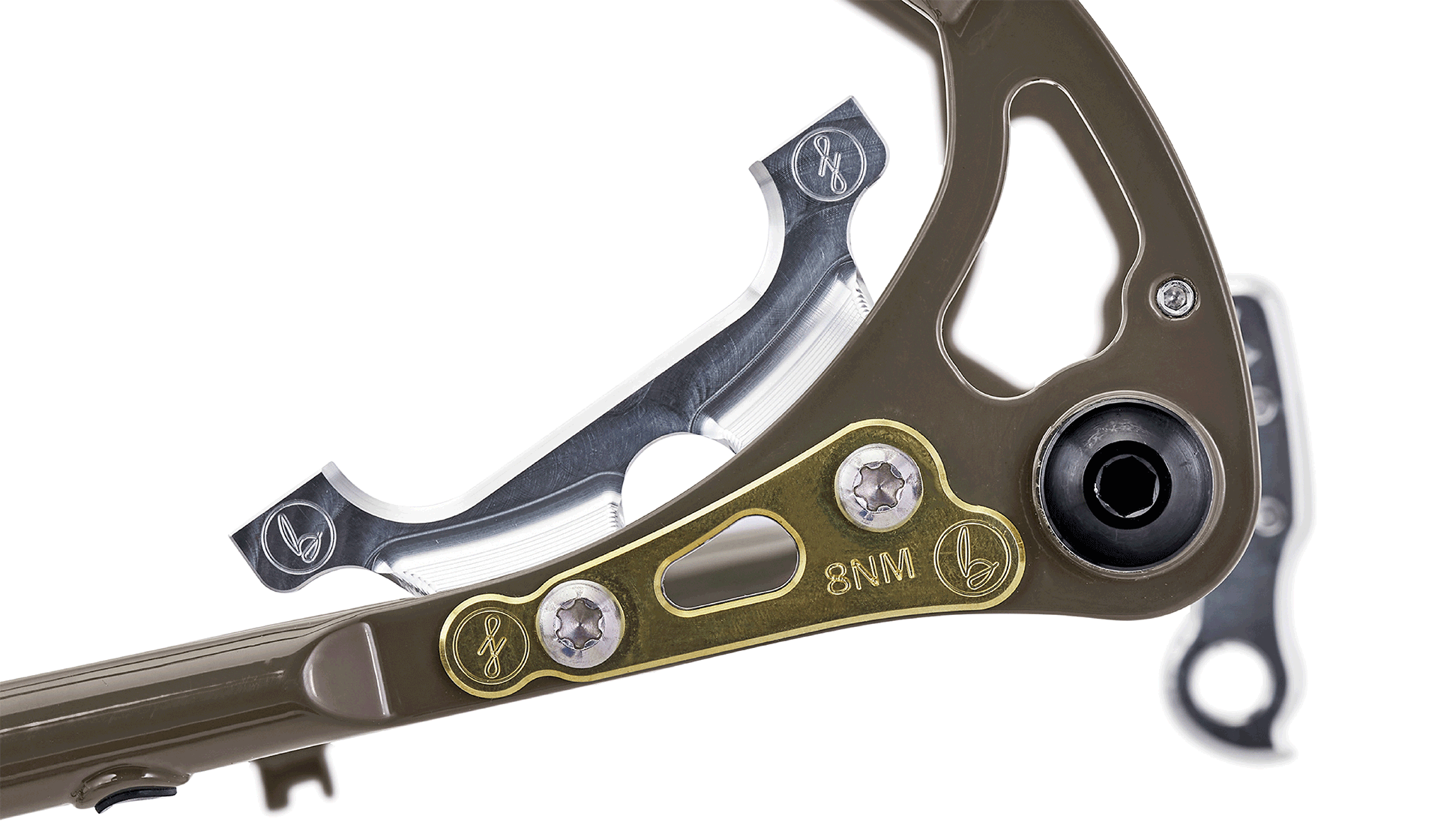

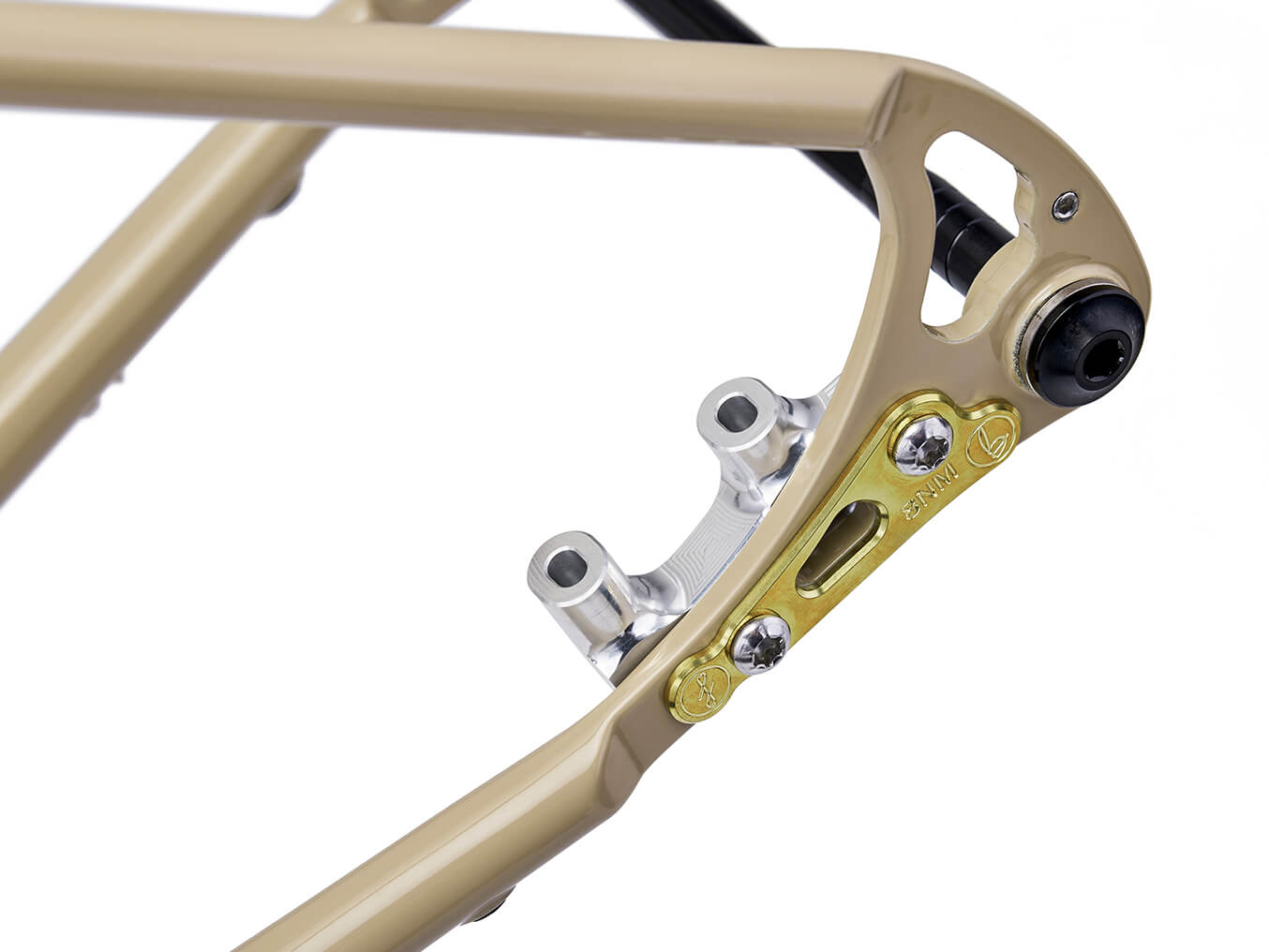

Fairlight x Bentley custom machined brake mounts and hanger. Compatible with postmount and flatmount calipers.
A huge amount of care goes into the design and manufacture of every Fairlight.

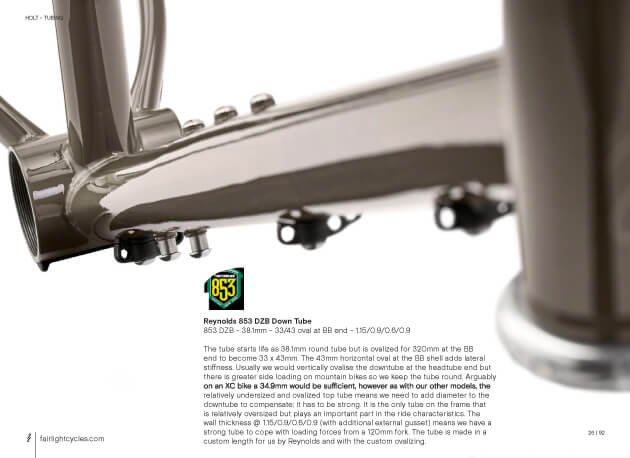

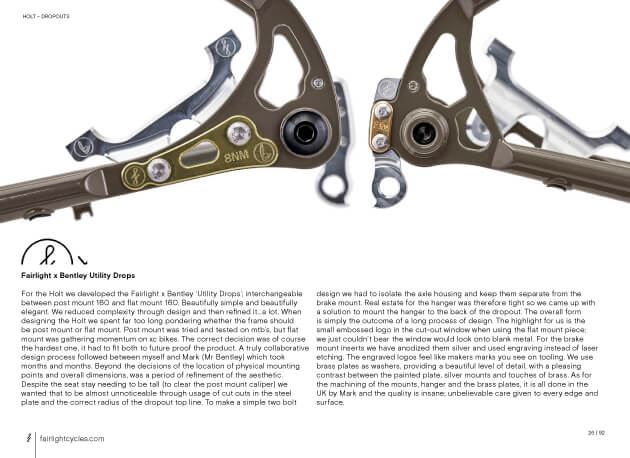

Detailed Design Notes
The best way to learn about the Holt 1.0 is to read the detailed design notes. They are testament to the care and thoughtful consideration we put into designing and manufacturing our products
Build Options
A summary of our base spec build options and pricing. All bikes are fully configurable. Upgrades including Hope or Chris King headsets, alternative wheels (Hunt, Hope & DT Swiss), alternative tyre options and even King Cage bottle cages. Every bike is assembled from start to finish by a single mechanic and built just for you.
Holt 1.0 Build Gallery

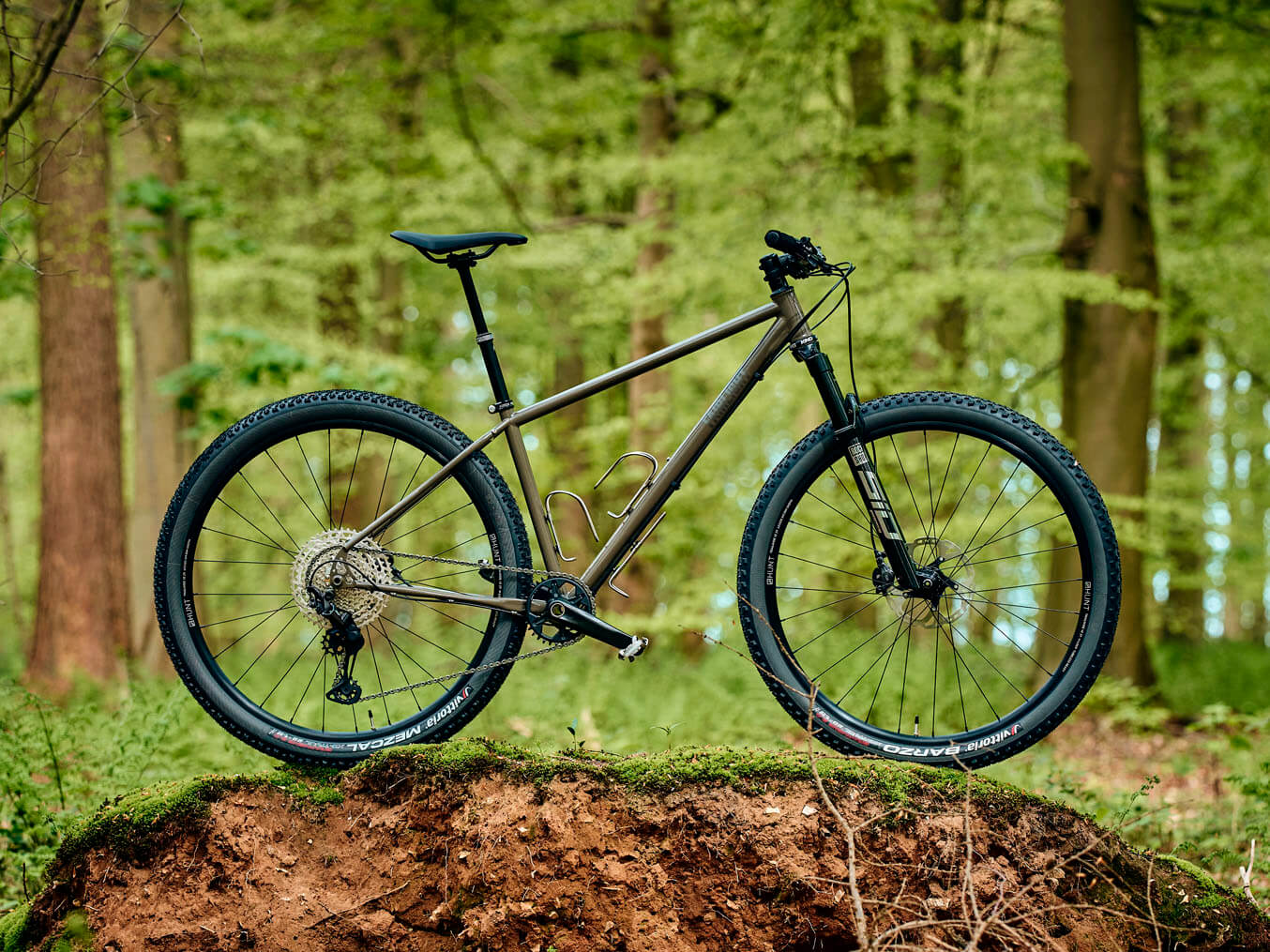

Medium Moss - XT. 11 photos.

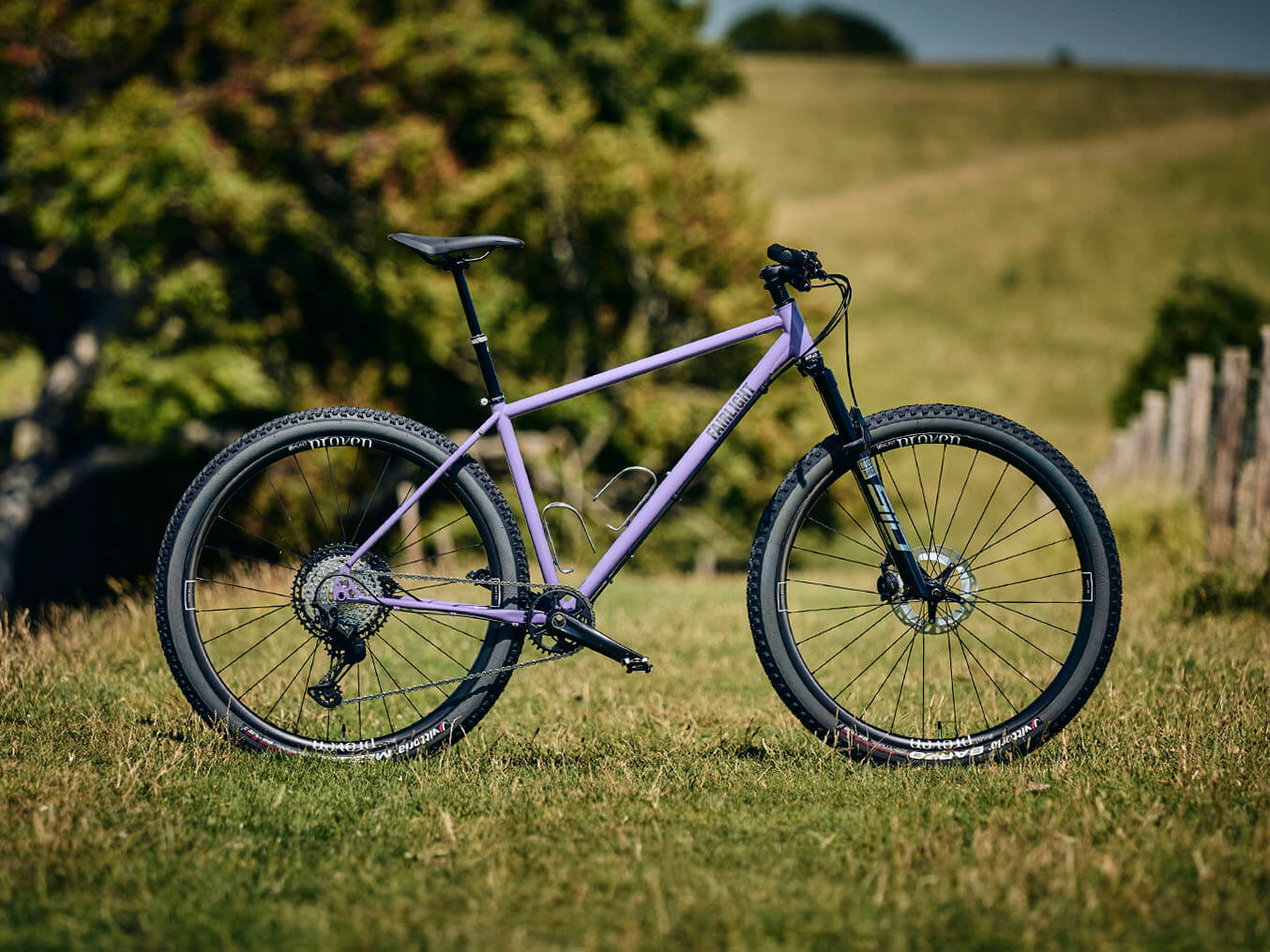

Large Violet XT. 17 photos.

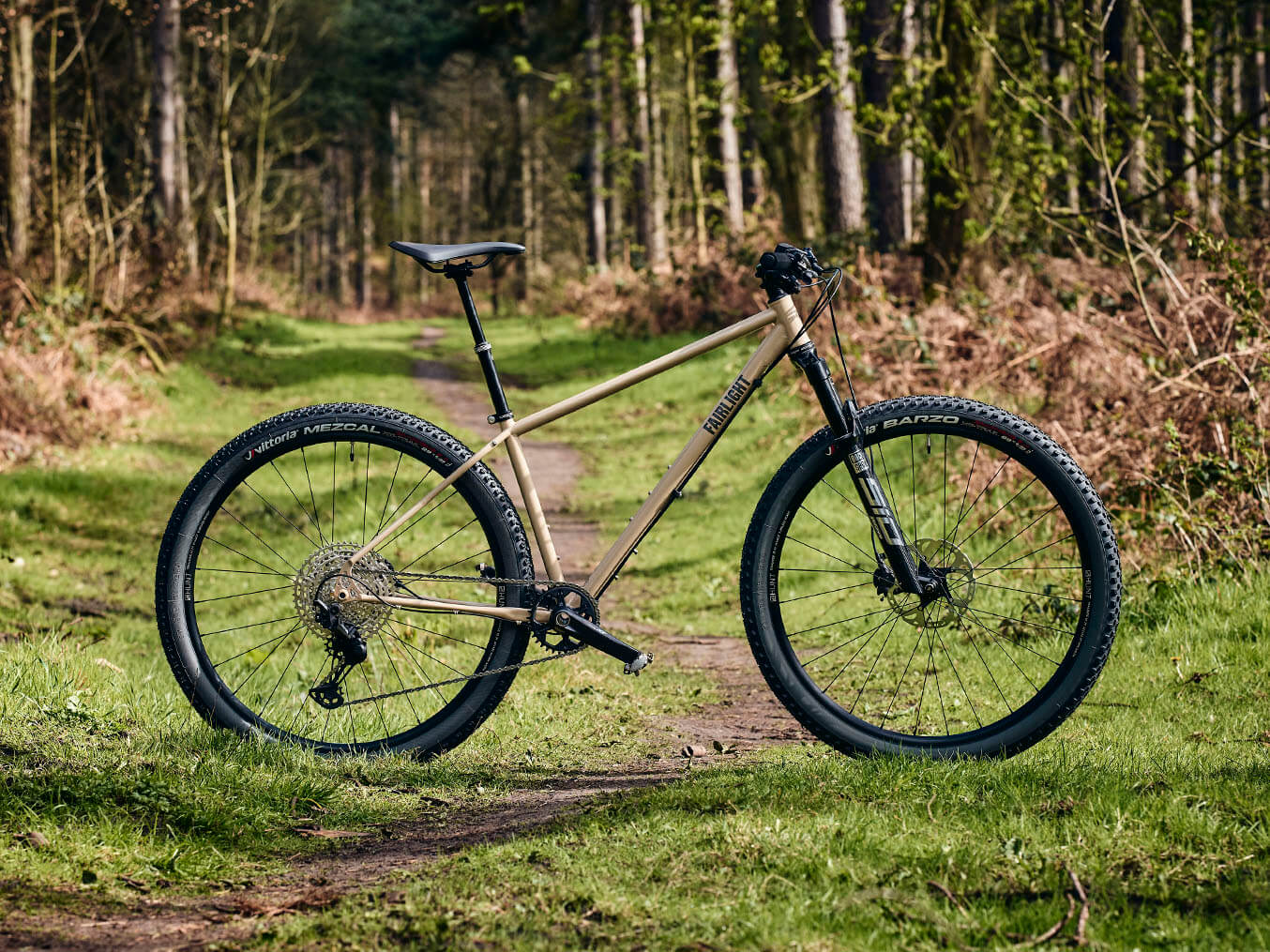

Medium Desert XT. 22 photos.

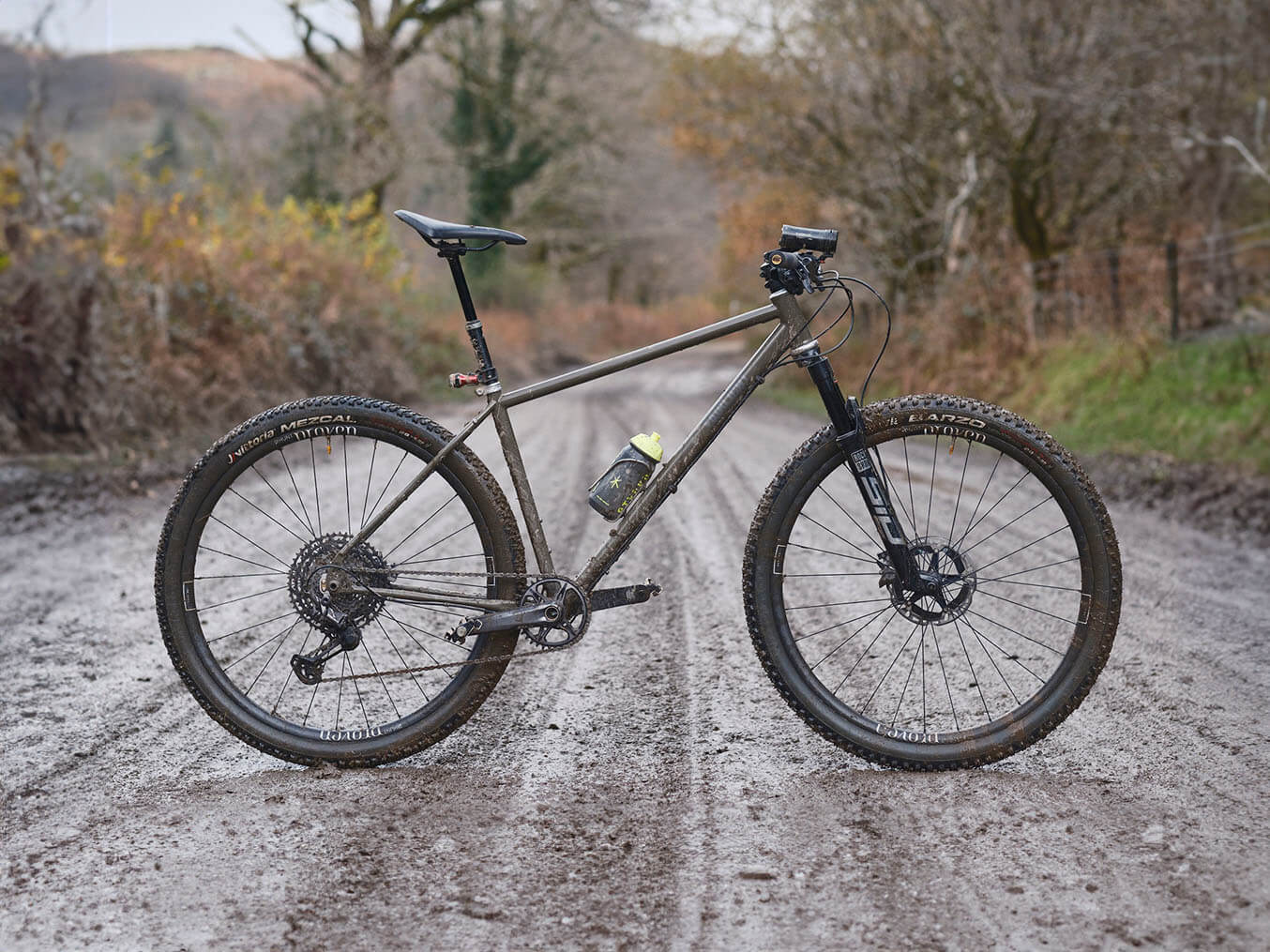

Large Moss - Rider Build - Alex McCormack . 12 photos.

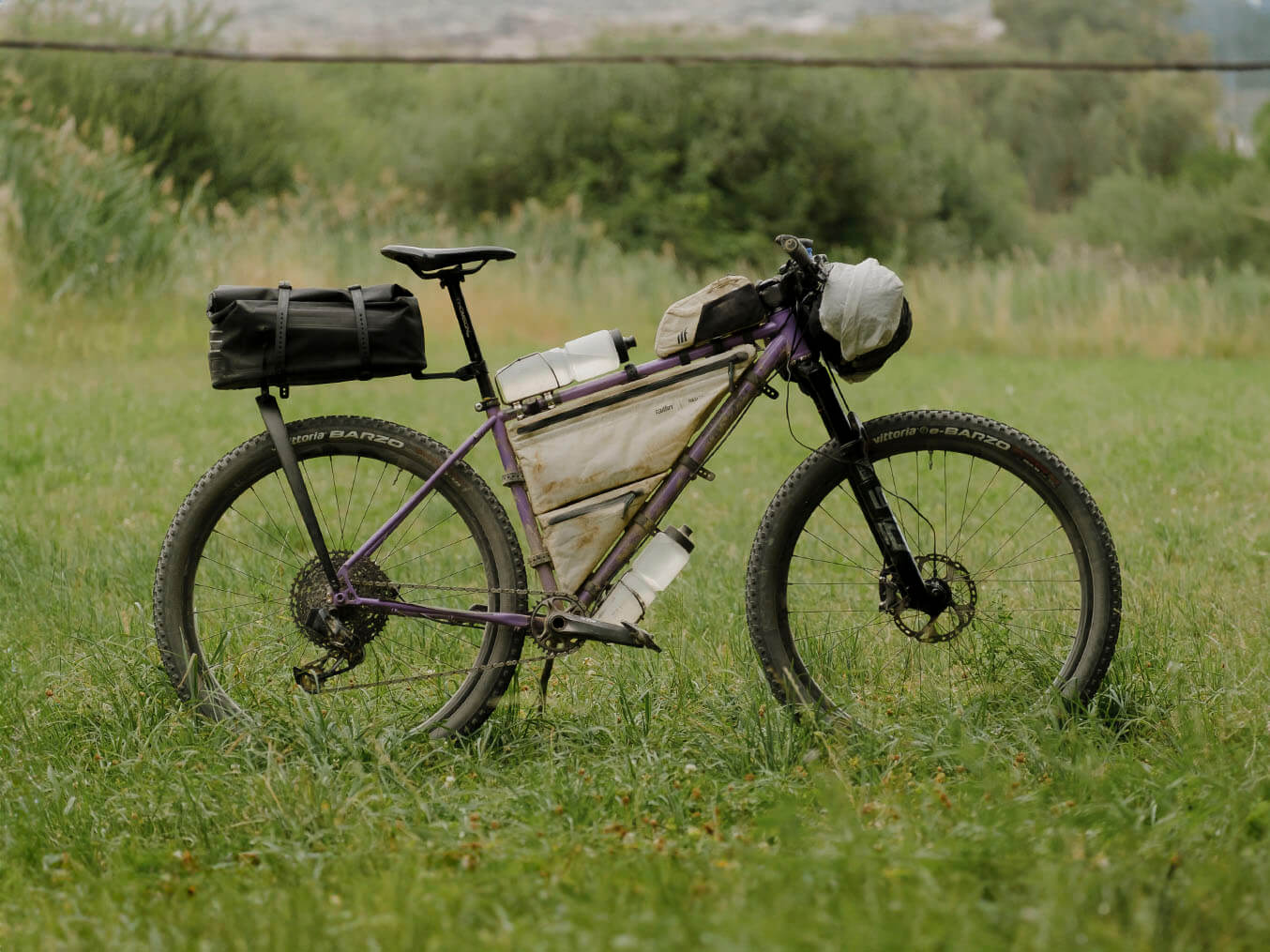

Large Violet - Rider Build - James Hayden. 14 photos.

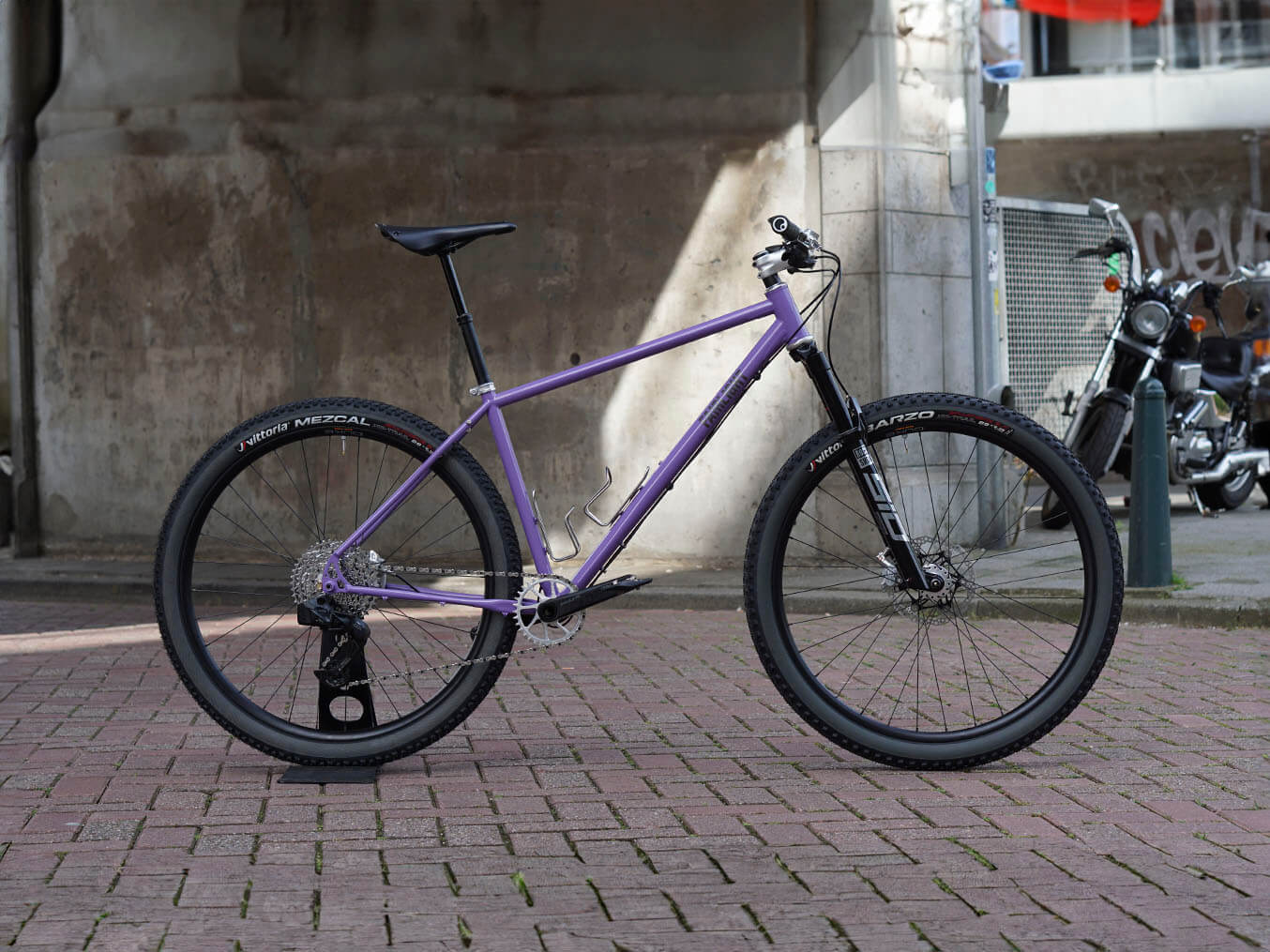

Medium Violet - Customer Build - SRAM AXS. 11 photos.

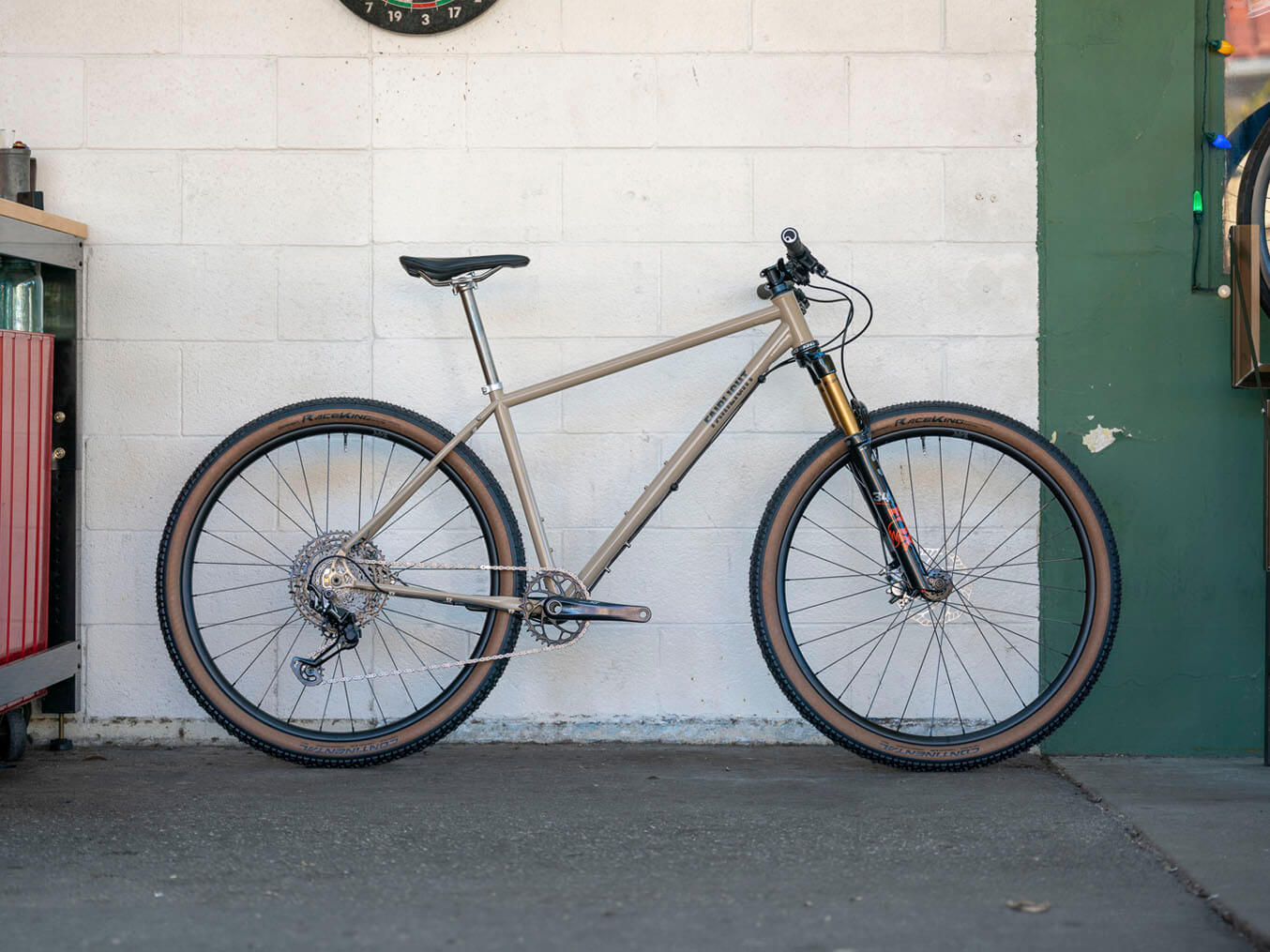

Large Desert XTR - Customer Build. 13 photos.

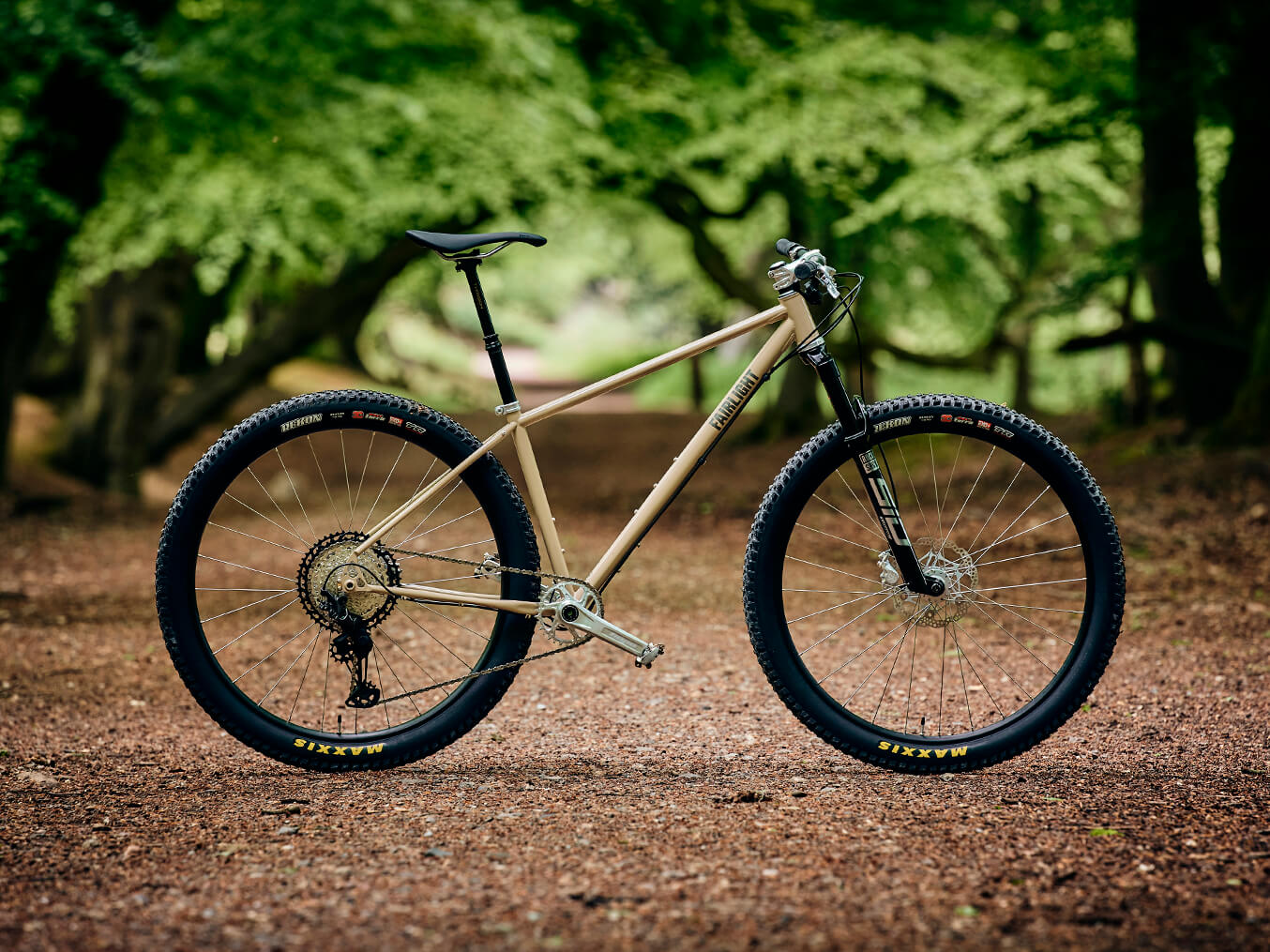

Holt 1.0 Medium Desert - Hope Custom Build. 17 photos.

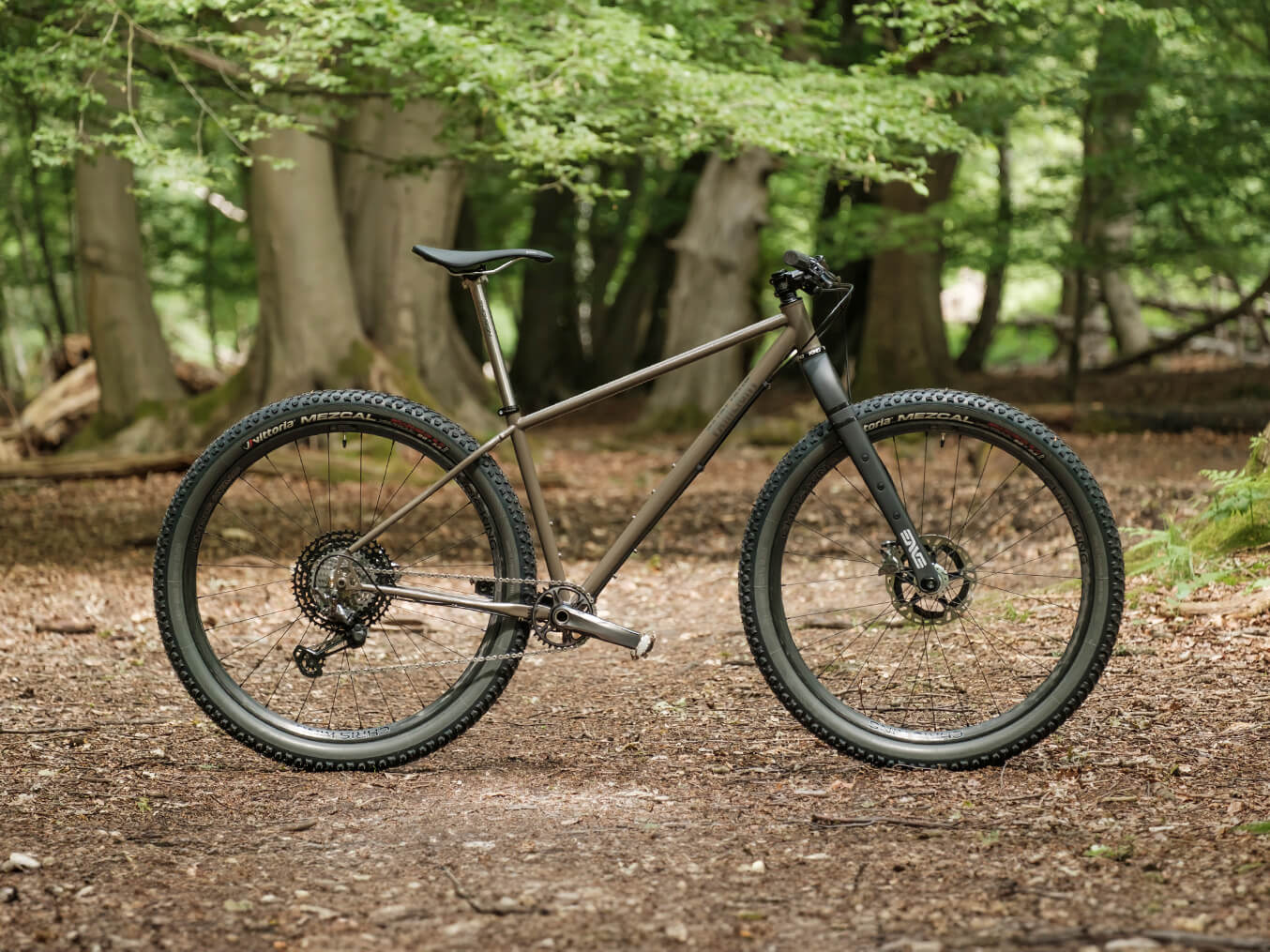

Holt 1.0 Moss Medium - Custom Build. 12 photos.
ALEX McCORMACK
HT550 WINNER 2024
& NEW COURSE RECORD

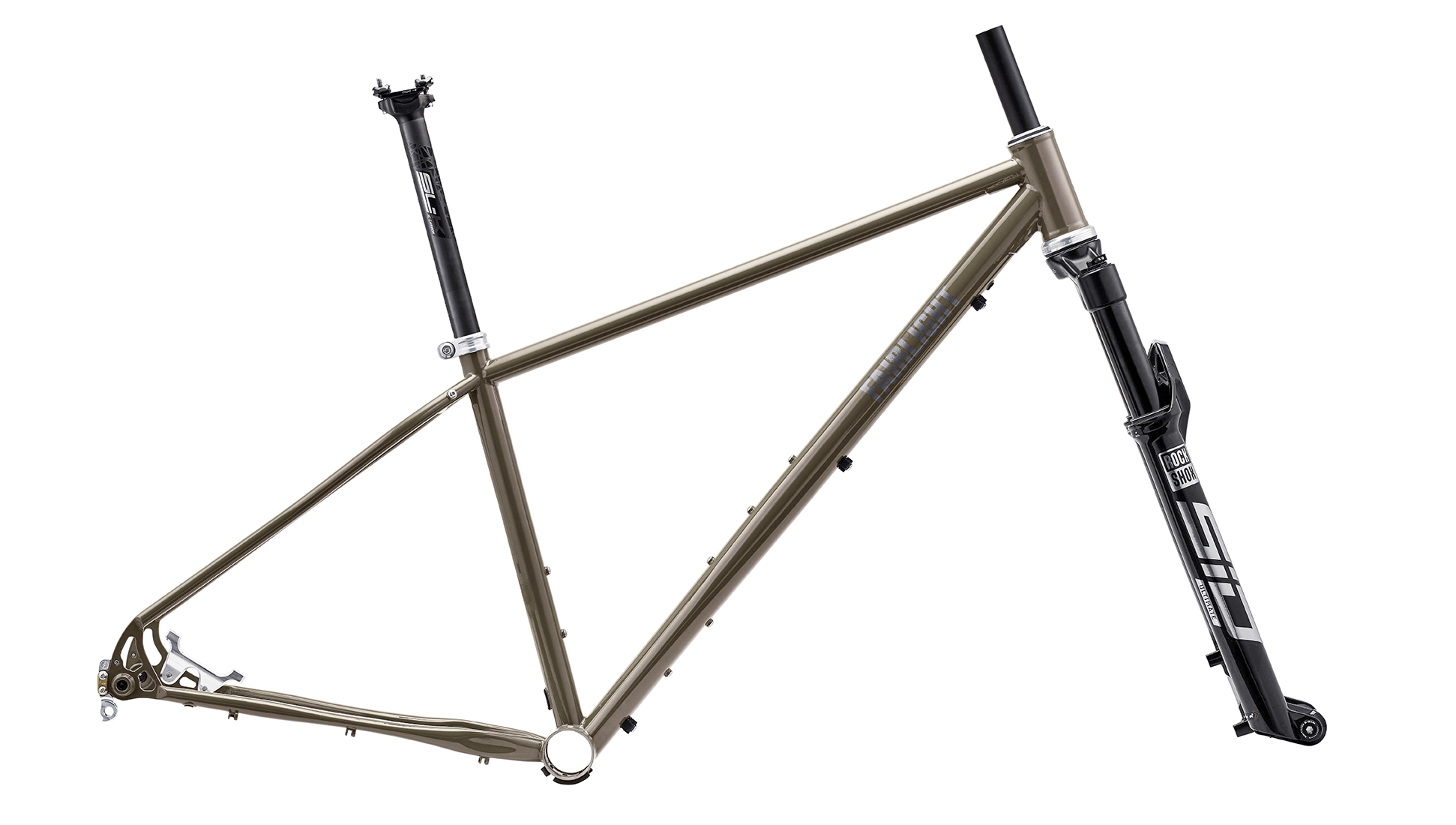

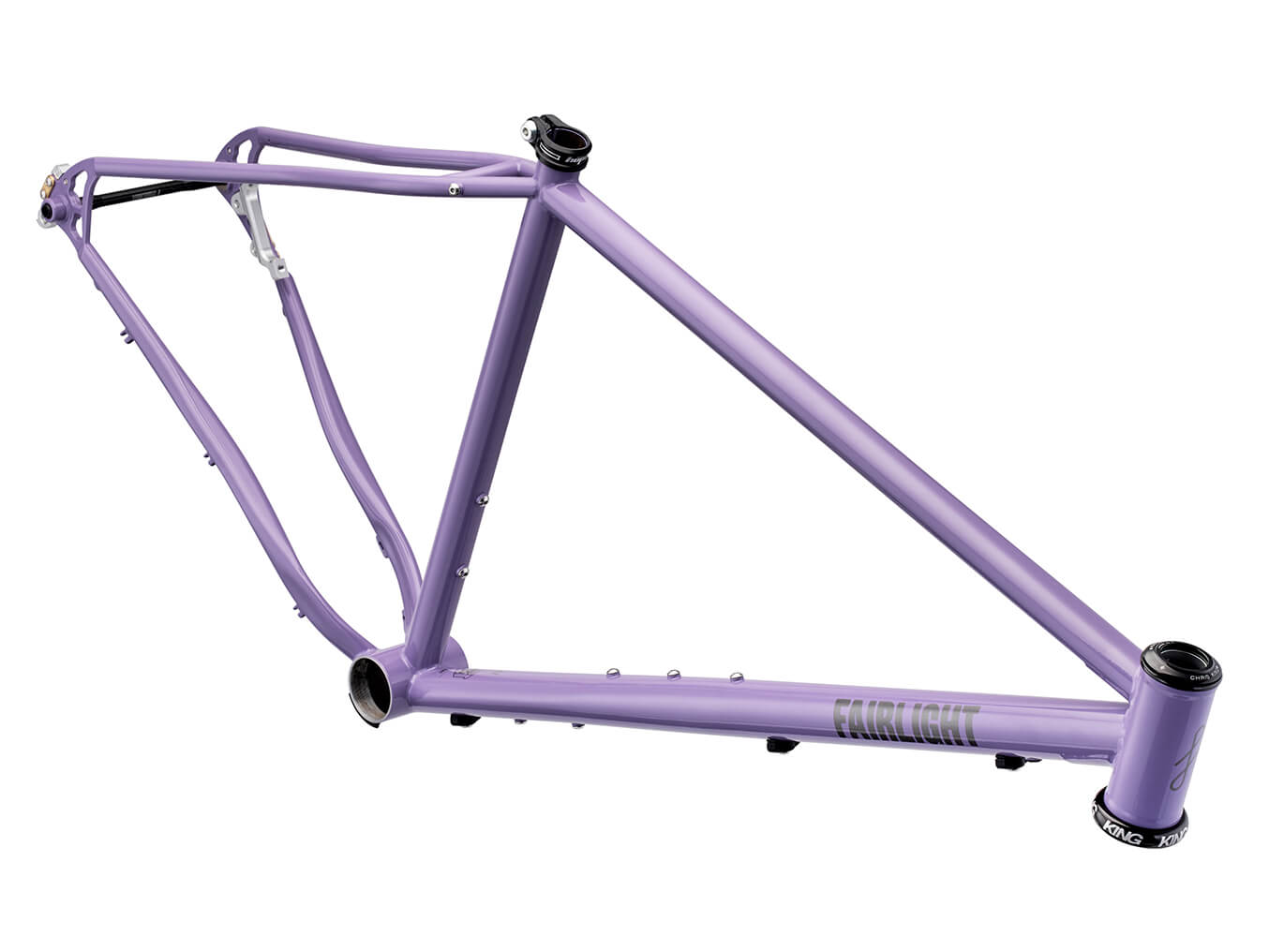

Holt 1.0 Frameset Gallery
Lookbooks
Holt 1.0 Lookbook
Photography of all frame colours and bike builds

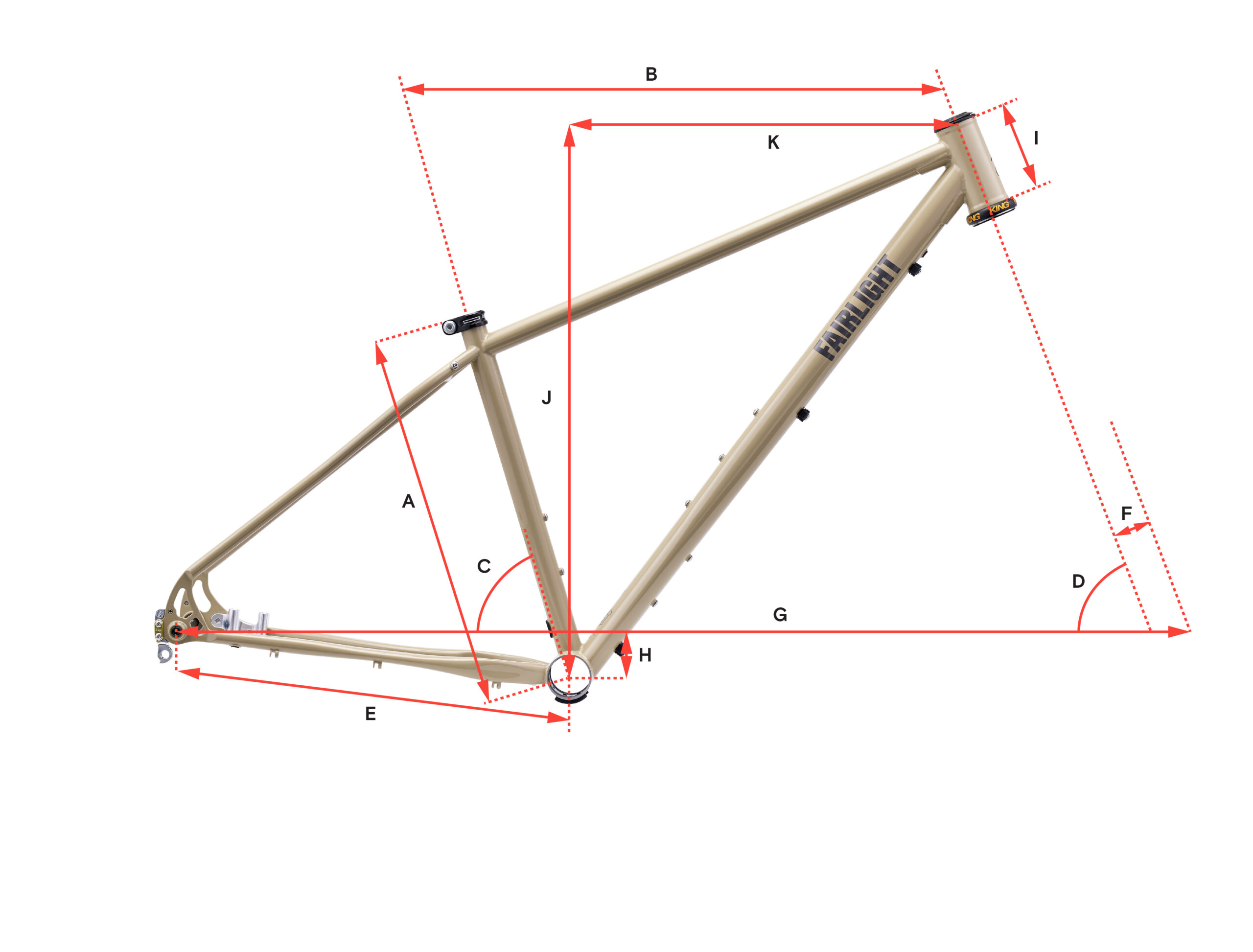

Frame Geometry
| A | Seat Tube (BB to top ST) | 385 mm |
|---|---|---|
| B | Effective Top Tube | 592 mm |
| C | Seat Tube Angle | 74.2 ° |
| D | Head Tube Angle | 67.5 ° |
| E | Chainstay Length | 433 mm |
| F | Fork Offset | 44 mm |
| G | Wheelbase | 1028 mm |
| H | Bottom Bracket Drop | 63 mm |
| I | Head Tube Length | 100 mm |
| J | Stack | 611 mm |
| K | Reach | 425 mm |
| Fork Length - Axle to Crown | 499 mm | |
| Recommended stem length (mm) | 40-60 mm | |
| Recommended Height Guide (cm) | 160-172 cm |
Reviews & Results
Bike Radar - "Fairlight has clearly put a lot of time and effort into the design of the Holt, with a bucket load of neat touches bringing a classy flourish to the frame....makes the process of covering miles wonderfully composed and comfortable...."
Silk Road Mountain Race - 1,900Km (34,500m climbing)
- 2022 - 2nd place - James Hayden
Highland Trail 550 - 800Km (16,000m climbing)
- 2023 - 4th place - Carl Hopps
- 2024 - 1st place & new course record - Alex McCormack
Hellenic Mountain Race - 883Km (27,800m climbing)
- 2023 - 4th place - Marin de Saint-Exupéry
- 2024 - 2nd place - Marin de Saint-Exupéry
Dales Divide - 600Km (7,800m climbing)
- 2024 - 1st Place - Alex McCormack
- 2024 - 4th Place - Carl Hopps
Accursed Race 2024 - 1600Km (37,000m climbing)
- 2024 - 2nd place - Mixed pairs - India Landy
Tour Aotearoa - Brevet/Tour - 3000Km
- 2024 - Finisher - India Landy
Information
Framebag Guide
If you are planning on fitting a frame bag to your Holt then you can use the below guide sheet to get all the dimensions you need. It includes all front triangle inside measurements and angles, as well as downtube safe zones for straps for full frame bags.
