ANRAED 4.0 FORK
£449.00

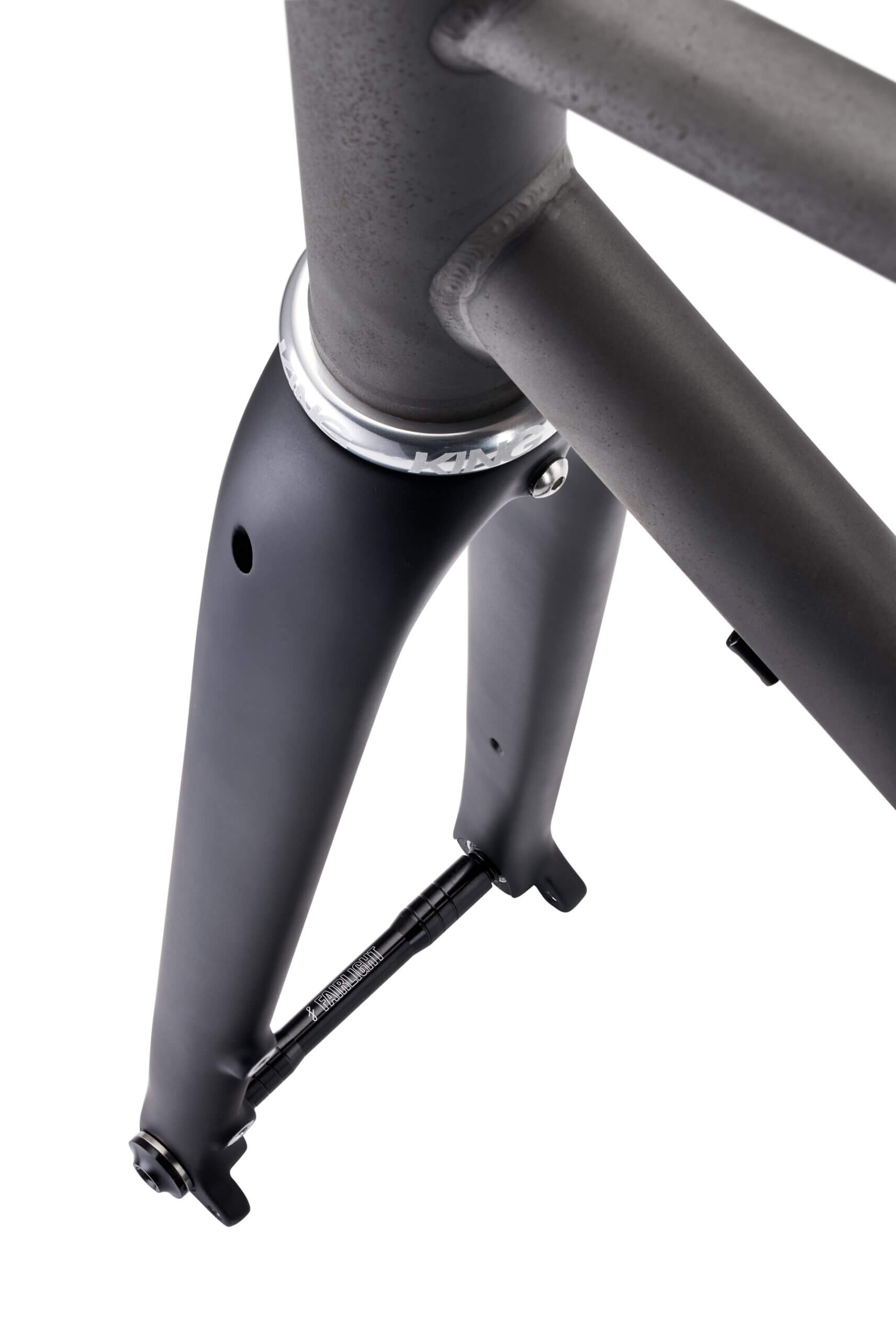

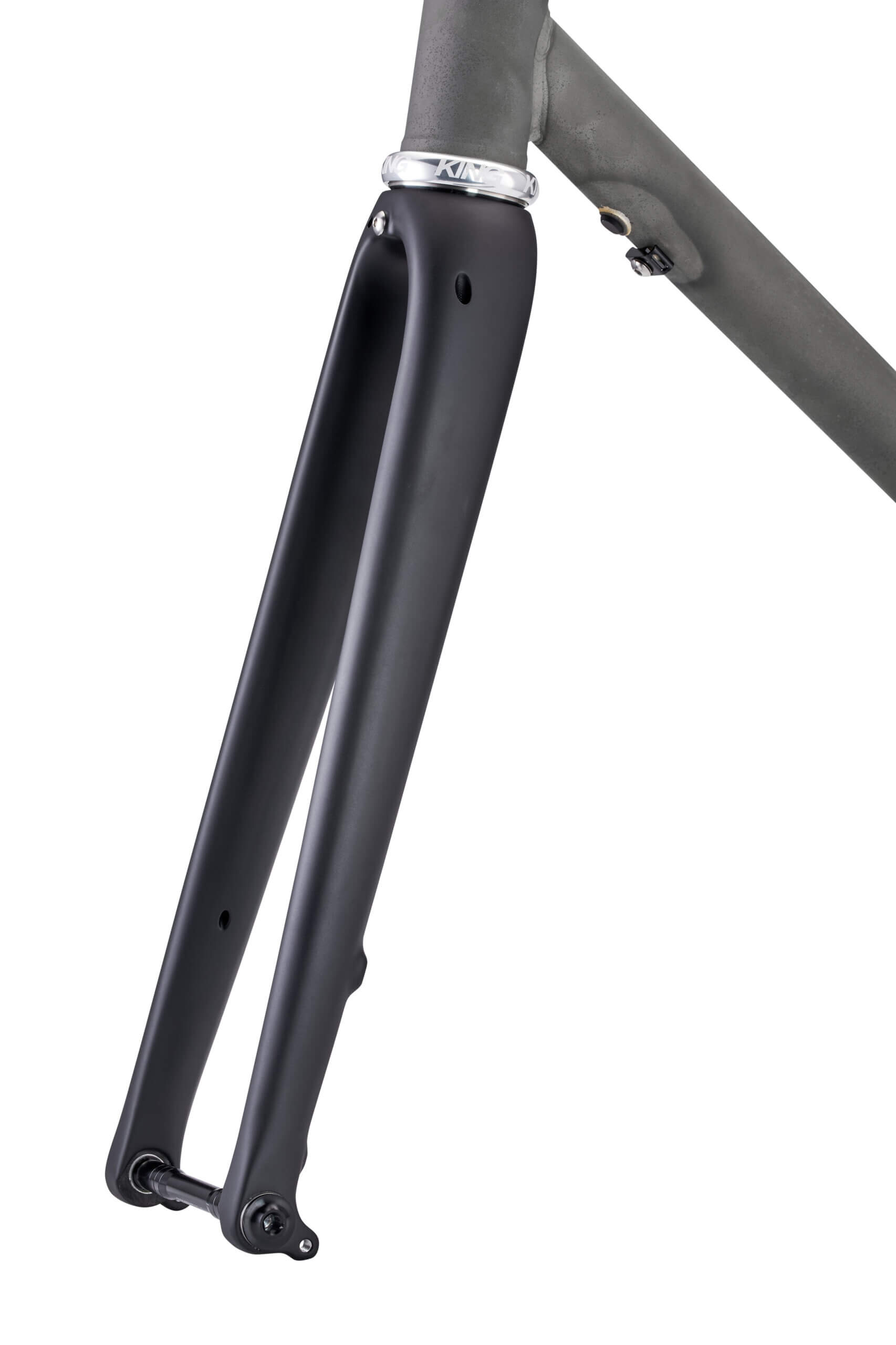

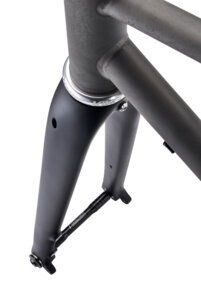

Anraed 4.0 Fork
A brand new mould. We have refined the leg shape [combined with a new lay-up] to provide around 10% more compliance (in specific test conditions) vs the Anraed 3.0. The fork length remains at 381mm axle to crown. 140/160mm Flat mount.
In stock
Specifications:
• Fork axle to crown length of 381mm. Fork offset of 45mm.
• 1.5”-1.1/8” tapered carbon steerer tube. 330mm long.

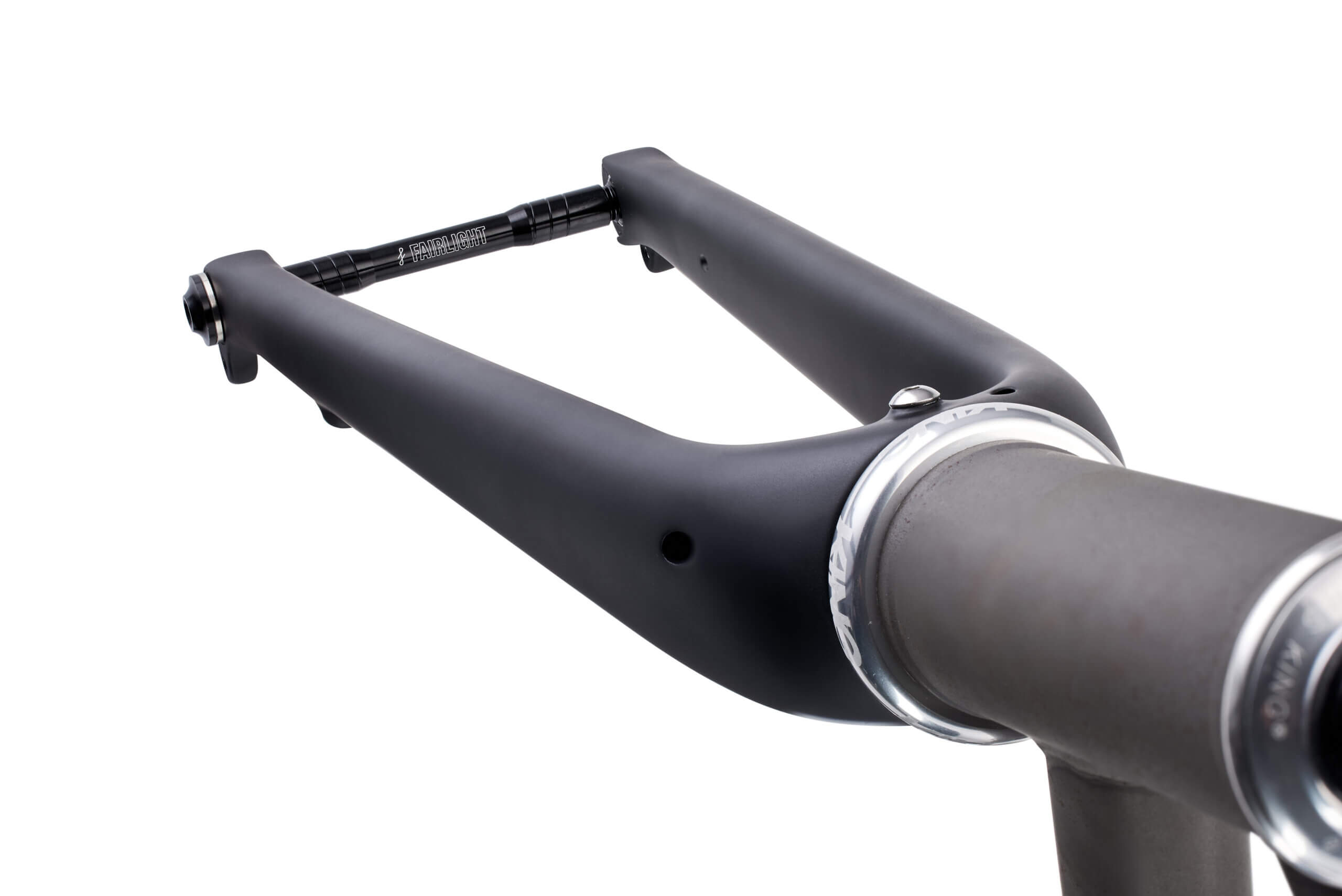

• 100 x 12mm thru axle dropouts. Supplied with axle. Axle length is 130.5mm and thread pitch is M12x1.5.
• Flat mount brake fitting. Compatible with 140/160mm. Internal fully-sleeved disc hose routing. Max 160mm rotor.
• Dropouts have ‘proper’ rack mount eyelets on the rear so no bending of mudguard stays needed.

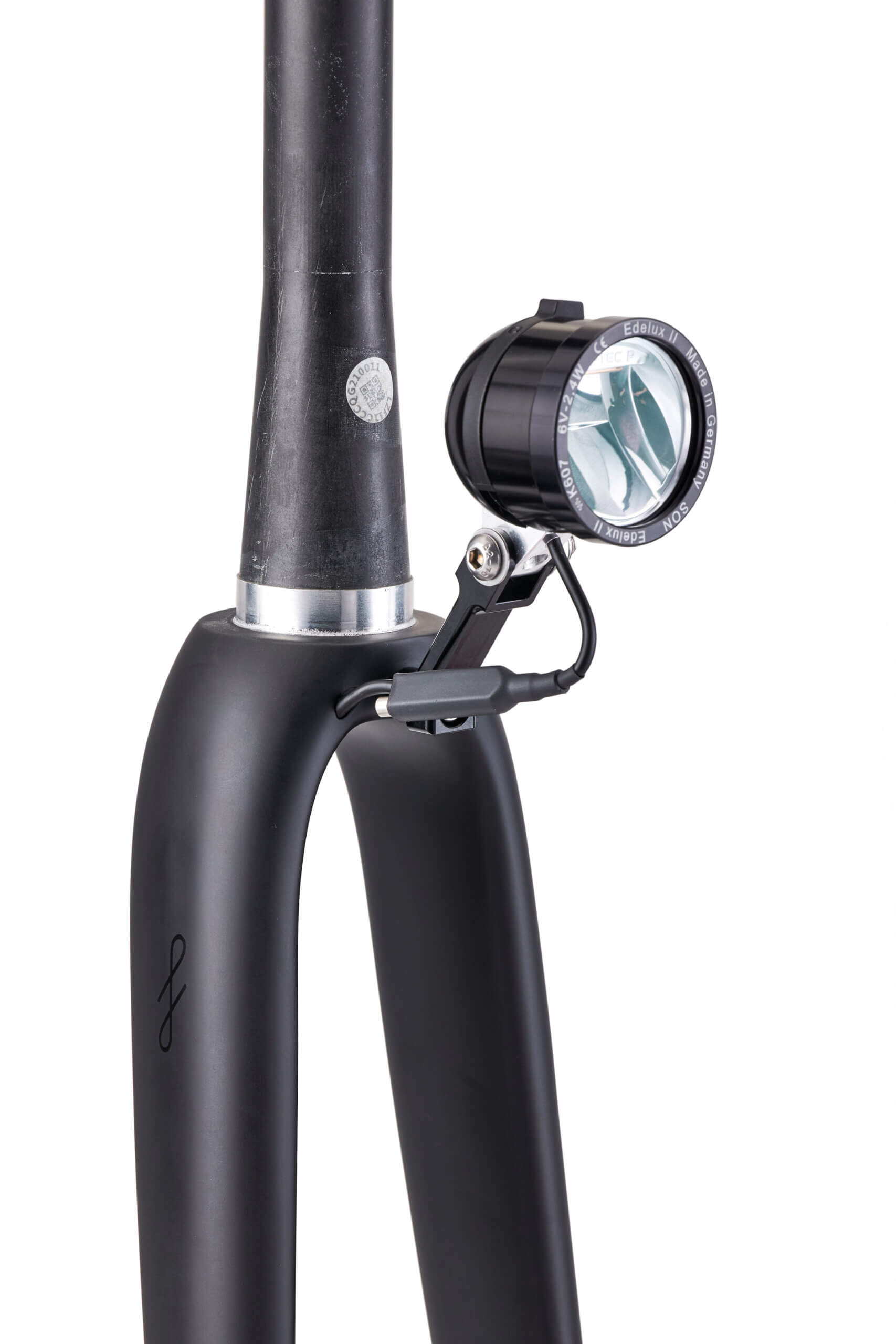

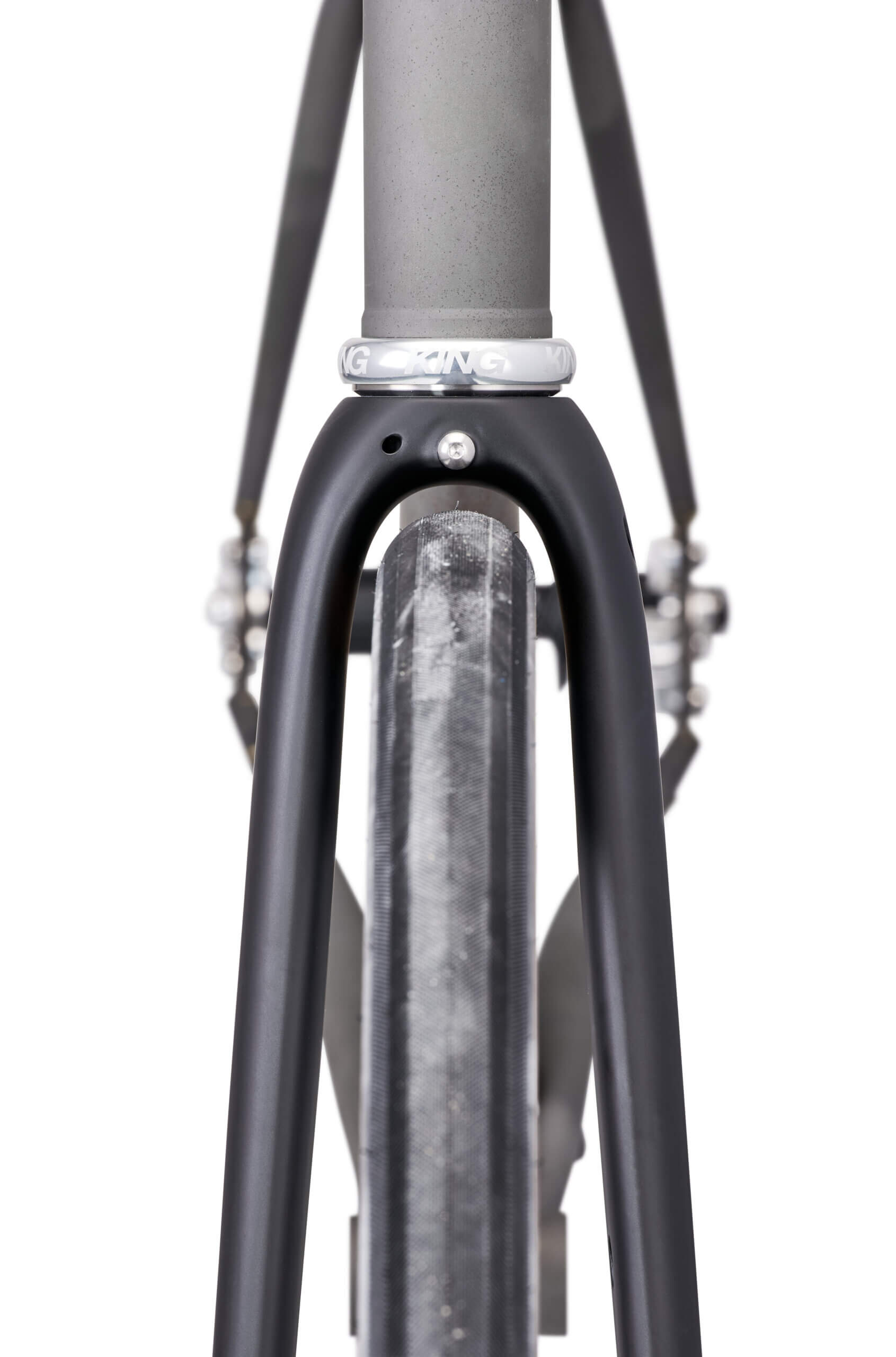

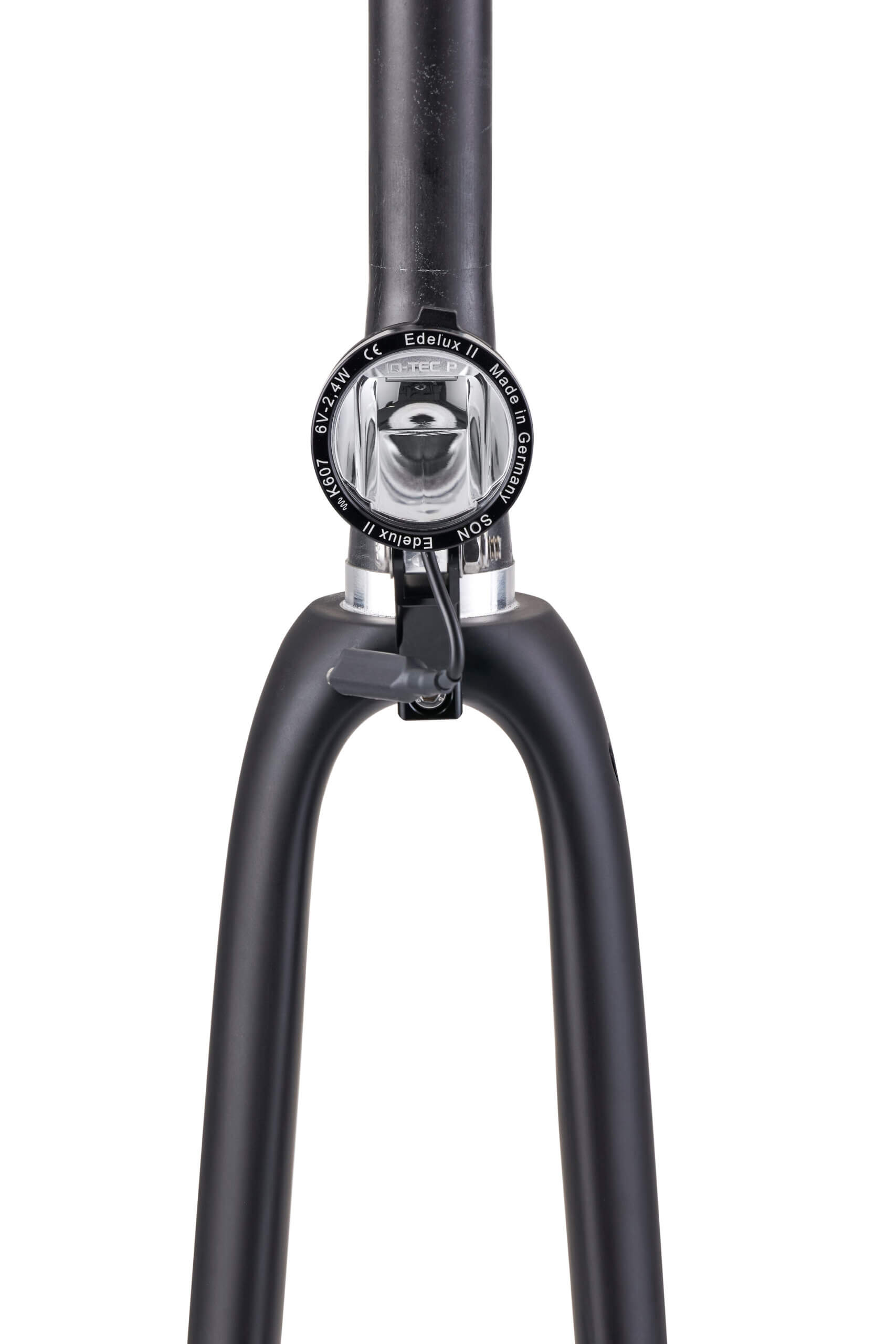

• Front and rear M5 mounts in the crown. Front for light mount, rear for mudguards. We chose threaded bosses versus a hole as they can be adjusted independently and it makes for a lot easier fitting.

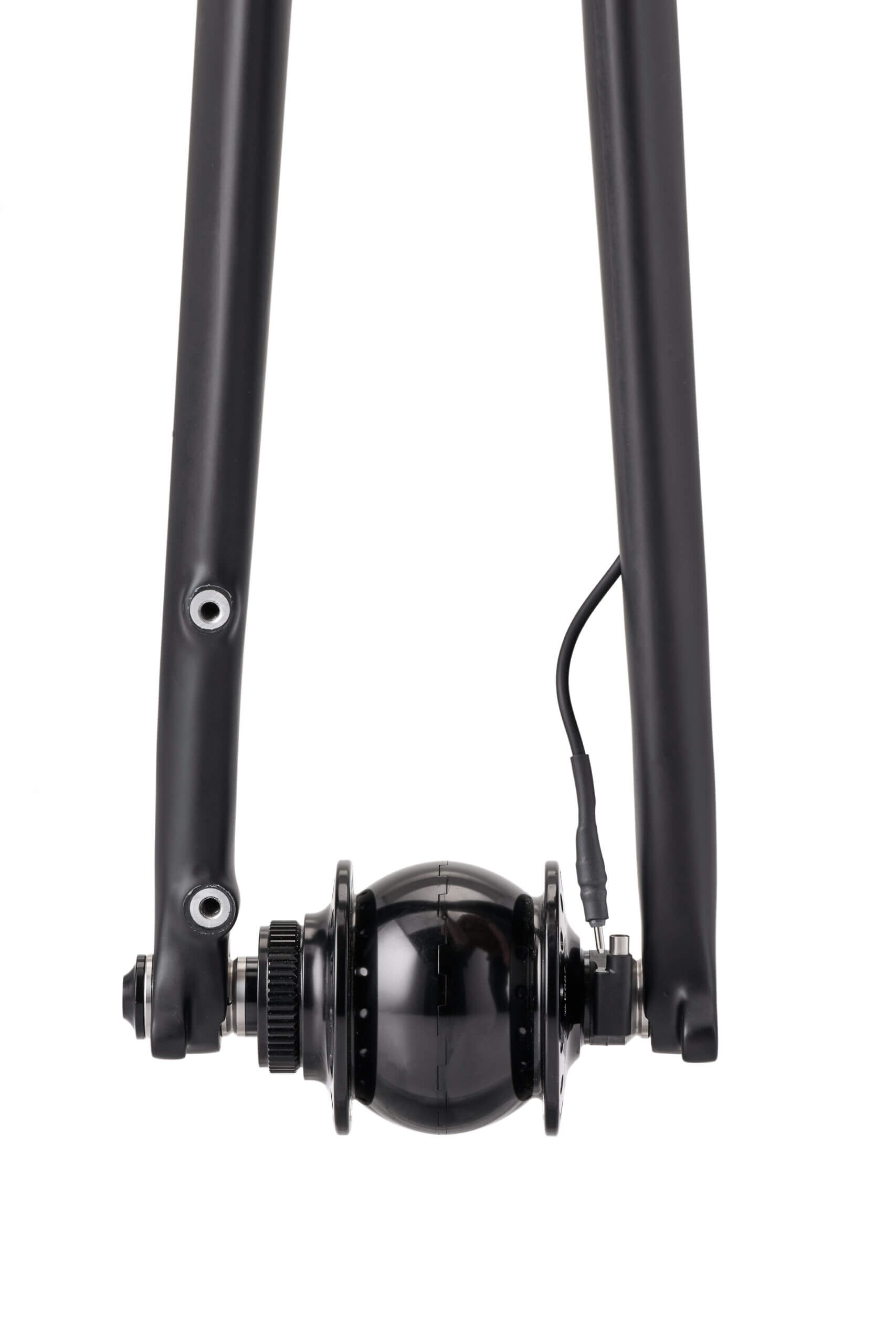

• Fully sleeved internal routing for a dynamo wire. Designed around a 3.5mm Son co-axial wire, but also compatible with a 3x4mm Supernova wire.

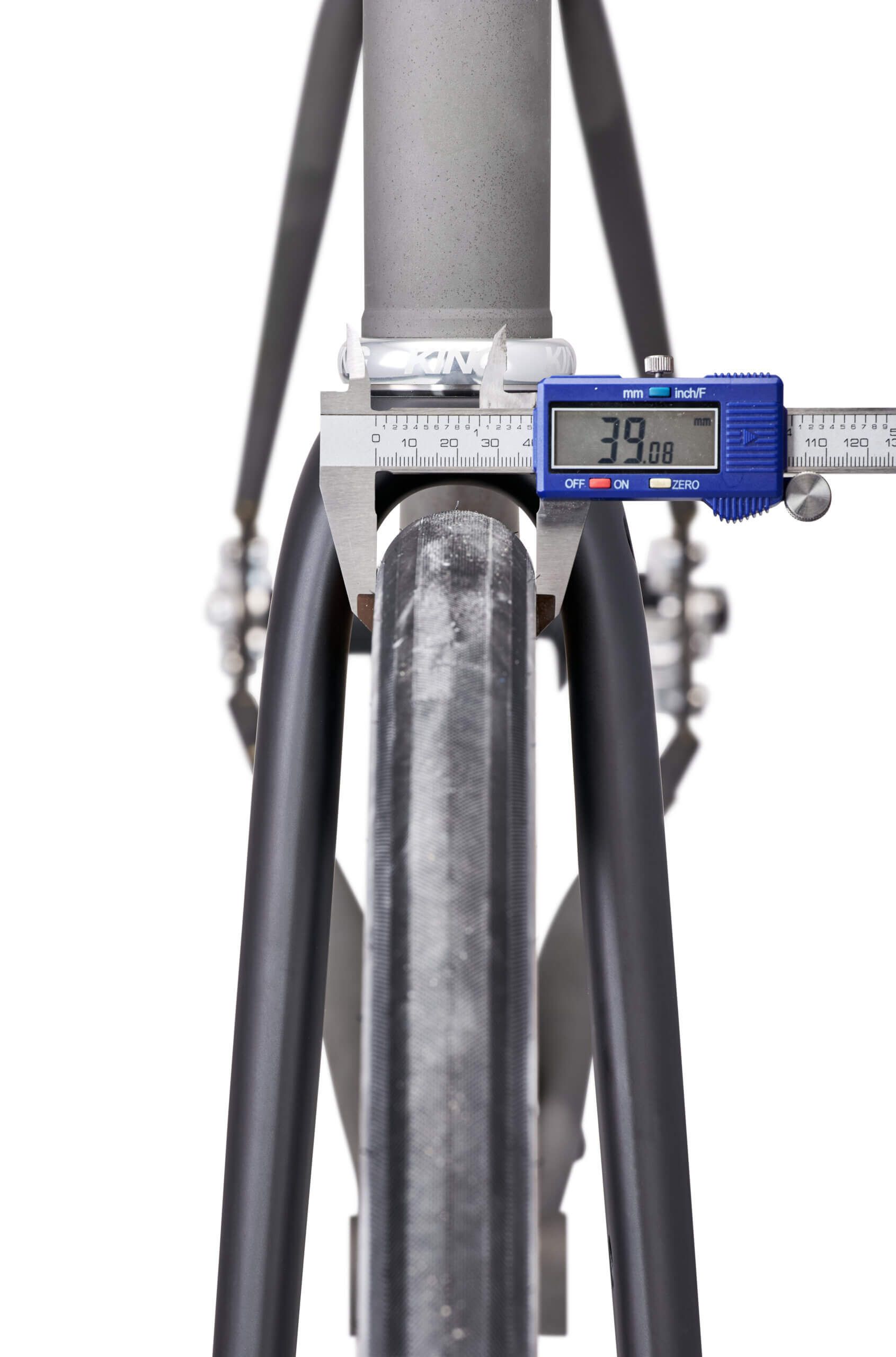

• Tyre clearance: 700 x 39mm. With mudguards: 700 x 35mm
Weight: 428g with paint but without axle. 472g with paint, 2x steel bolts (for crown) and axle.
Fork is supplied with expanding bung for steerer tube.
Raw UD carbon – The fork is completely raw uni directional carbon. It comes out of the mould is given a clean and then a matte lacquer is applied to protect the fork. Our decal is placed on before the lacquer. Every fork is hand layered into the mould so the carbon always looks a little different on each fork but the aesthetic is one we really like and we are proud to show off the workmanship.
